Double harrow | Roller range

Die perfekte Ergänzung zur Saatbettbereitung (1)Cobra7000-2TX-Striegel_Claas_d0_kw_Q8172142_d1_220322

The perfect supplement for seedbed preparation – in combination with a following roller

For seedbed preparation for maize or sugar beet, the AMAZONE Cobra can also be equipped with a following harrow for many of the rollers. The following harrow creates a very fine-crumbled soil surface structure and thus the perfect germination conditions for the following crops. An additional advantage when using the harrow is the optimised straw distribution.

Die perfekte Ergänzung zur Saatbettbereitung (2) 78900187_Striegelsystem_12-125_HI_KW580_361_d1_210813
Harrow system for SW, KW and UW following rollers
Die perfekte Ergänzung zur Saatbettbereitung (2) 78900187_Striegelsystem_12-125_HI_KWM3001-600-125_952_d1_220322
Harrow system for KWM & DW following rollers

Die perfekte Ergänzung zur Saatbettbereitung (4) 78900072_Striegelsystem_12-250_HI_DUW_580_d1_210813
Harrow system for DUW following roller

More information + Less information -

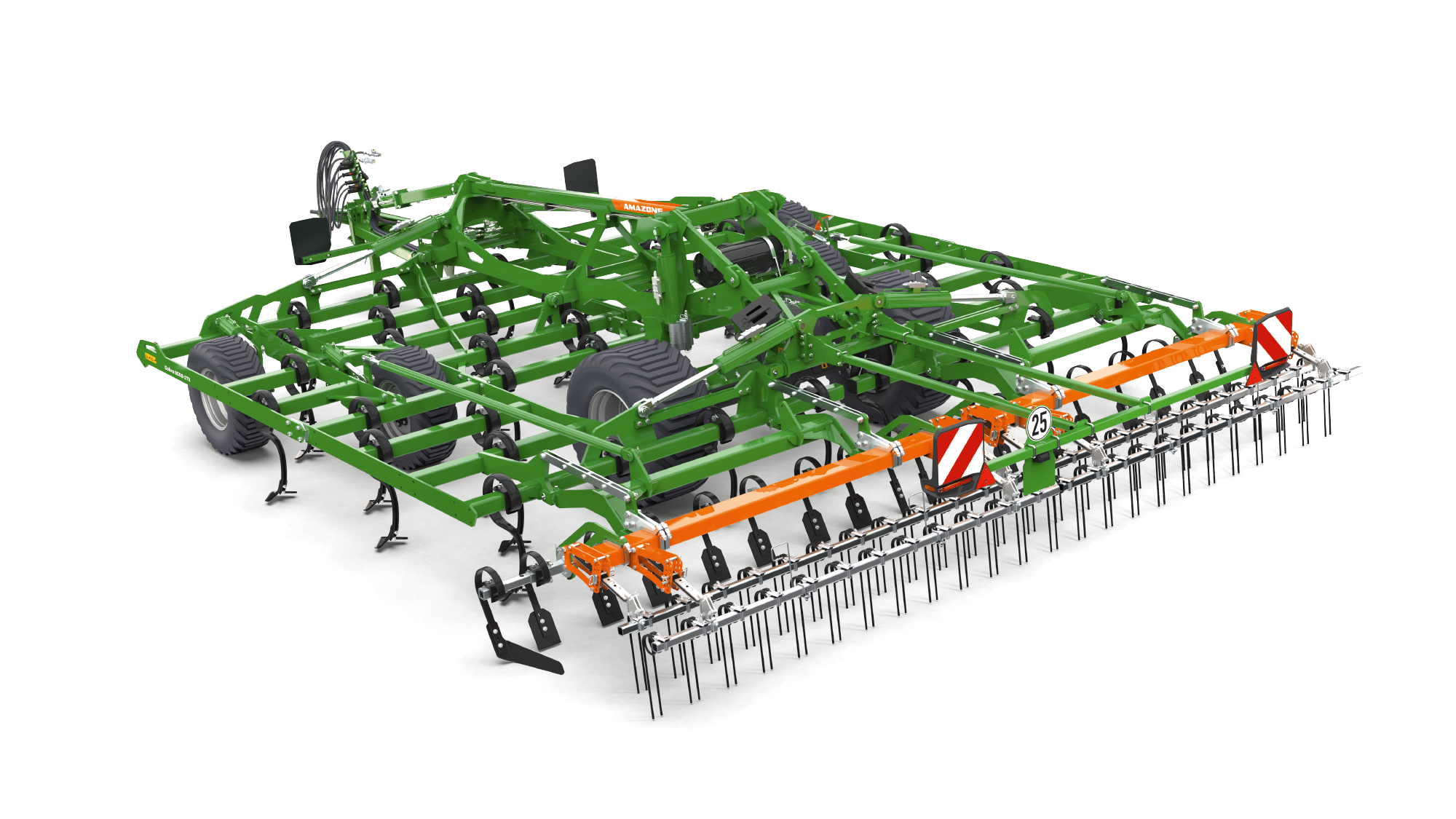

The shallow duo – double harrow

The double harrow and duckfoot shares are the ideal combination for mechanical weed control and shallow soil tillage. The Cobra works at a shallow working depth and cuts the weeds off across the full working width. The following double harrow pulls out the weeds without any further reconsolidation. The germinated weeds and volunteers lie exposed on the soil surface and die.

More information + Less information -

The roller range – Reconsolidation and depth control

A wide range of following rollers for reconsolidating the soil are available for all AMAZONE cultivators. Decide which roller suits your farm best!

Das Walzenprogramm (1) 79200130_SW_3000-600_d1_210309
SW cage roller 600 mm
Das Walzenprogramm (2) 77200057_TW_3003_d1_210309
TW tandem roller 520/380 mm

Das Walzenprogramm (3) 78900230_UW_3000-580_d1_210309
UW U-Profile roller 580 mm
Das Walzenprogramm (4) 78900330_DUW_3000-580_d1_210309
DUW Double U-Profile roller, 580 mm

Das Walzenprogramm (5) 77800300_KW_3001-580-125_d1_210309
KW wedge ring roller 580 mm
Das Walzenprogramm (6) 77800930_KEILRINGWALZE_KWM_3001-600-125_farbig_698_d1_220321
KWM wedge ring roller with Matrix tyre profile 600 mm

Das Walzenprogramm (7) 77800130_KWM_650_d1_210309
KWM wedge ring roller with Matrix tyre profile 650 mm
Das Walzenprogramm (8) 77901130_DW_3000-600_d1_210309
DW disc roller 600 mm

Das Walzenprogramm (9) 77901730_DOPPEL-DISC-U-PROFILWALZE_DDU_3000_farbig_701_d1_220322
DDU double disc U-profile roller 600 mm

More information + Less information -
Walzenlager (1) HD-Walzenlager_951_d1_220321

Roller bearing

All following rollers on AMAZONE cultivators are equipped with bolt-on bearing shafts. This keeps repair work to a minimum in the case of bearing damage. The robust spherical roller bearings provide high reliability and a long service life.

More information + Less information -
HD-Walzenlager (1) Walzenlager_948_d1_220321

HD roller bearings

The roller bearings are now optionally available in an HD version for maximum operational reliability and an extreme service life.

  • Extreme service life thanks to a metallic face seal
  • Completely maintenance-free with life-long lubrication thanks to the gear oil filling
  • Robust and insensitive due to spherical roller bearings instead of ball bearings

More information + Less information -
