Face seal – Reliability and comfort are the key

No lubrication ever again – thanks to the maintenance-free disc bearings
With no need to lubricate the disc bearings, this results in a significantly reduced overall maintenance time. The face seal has been used in AMAZONE tillage equipment for almost 25 years, and has, over this period, more than proven itself across every continent.

Advantages of the disc element

• Maintenance-free disc bearings with face seals and life-long lubrication
• Maintenance-free overload protection via rubber spring elements
• Individual disc suspension for optimised contour following and excellent through passage

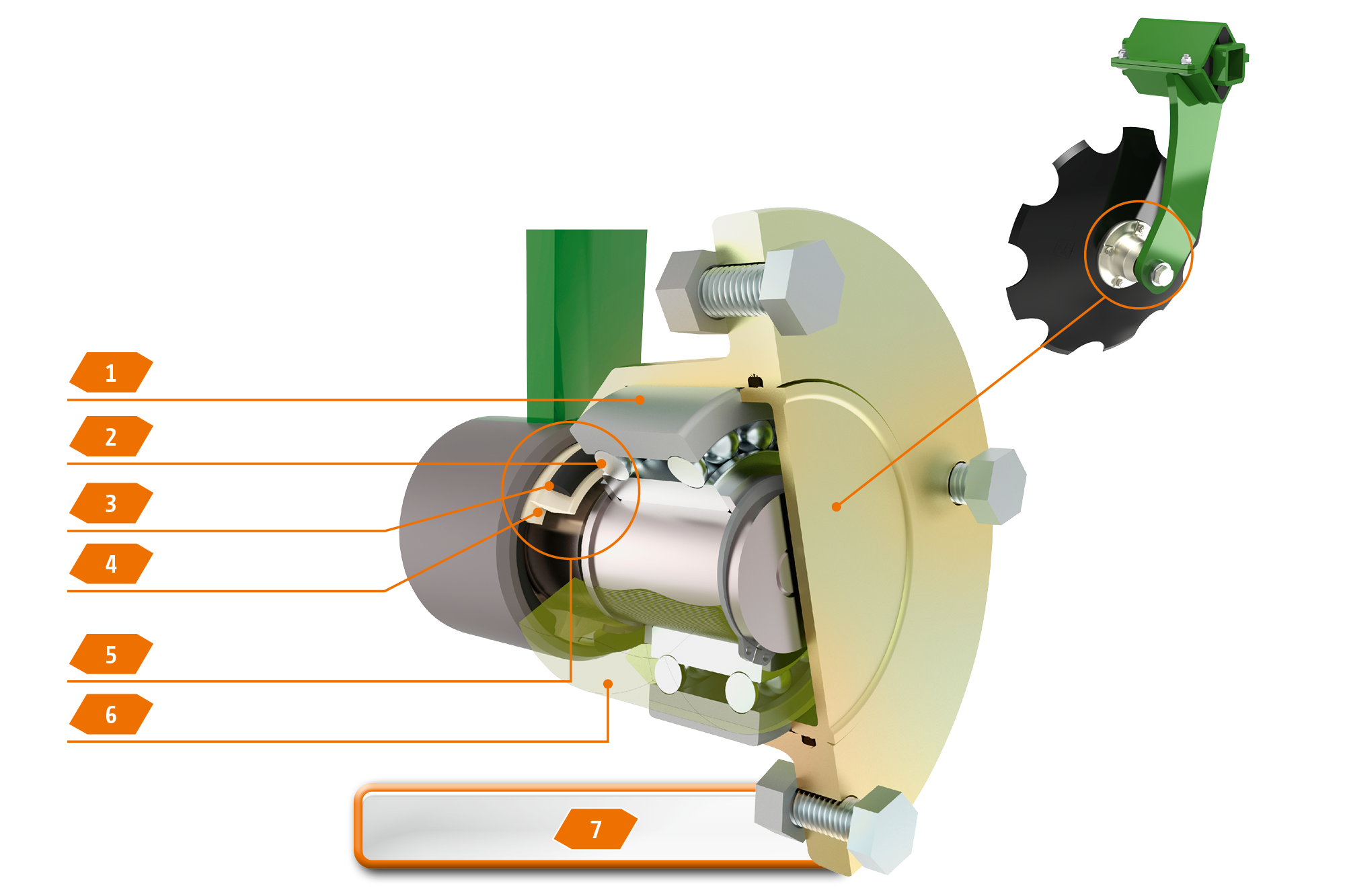

1. 2-row angular roller bearing
2. 2 x roller bodies
3. O-ring
4. 2 x cast rings with face seal
5. Face seal built into conical seats
6. Gear oil filled housing
7. Proven 2,000,000 times over!
