Combine the Catros with the optimum seeding system ... it makes no difference whether it’s the GreenDrill, XTender or FTender

The universal conveying system enables the Catros to be combined with different sowing systems. For example, the GreenDrill 501 with a hopper capacity of 500 l can be used in exactly the same way as the front or rear hoppers with a capacity of 1,600 to 4,200 l. In addition to catch crops, other seeds or even mineral fertilisers such as micro-granules can be applied.

Mounted

• GreenDrill 200, 200 l hopper capacity
• GreenDrill 501, 500 l hopper capacity

Front hopper

• FTender 1600, 1,600 l hopper capacity
• FTender 2200, 2,200 l hopper capacity

Rear hopper

• XTender 4200, 4,200 l hopper capacity
• XTender-T 4200, 4,200 l hopper capacity

Advantages of conveying systems with a segmented distributor head

• Optimum lateral distribution across the entire working width
• Combination of different sowing units
• High application rates possible
• Has the option to be equipped with 12 to 48 outlets
• Part-area, site-specific sowing

Catch crop sowing and soil tillage in one operational pass

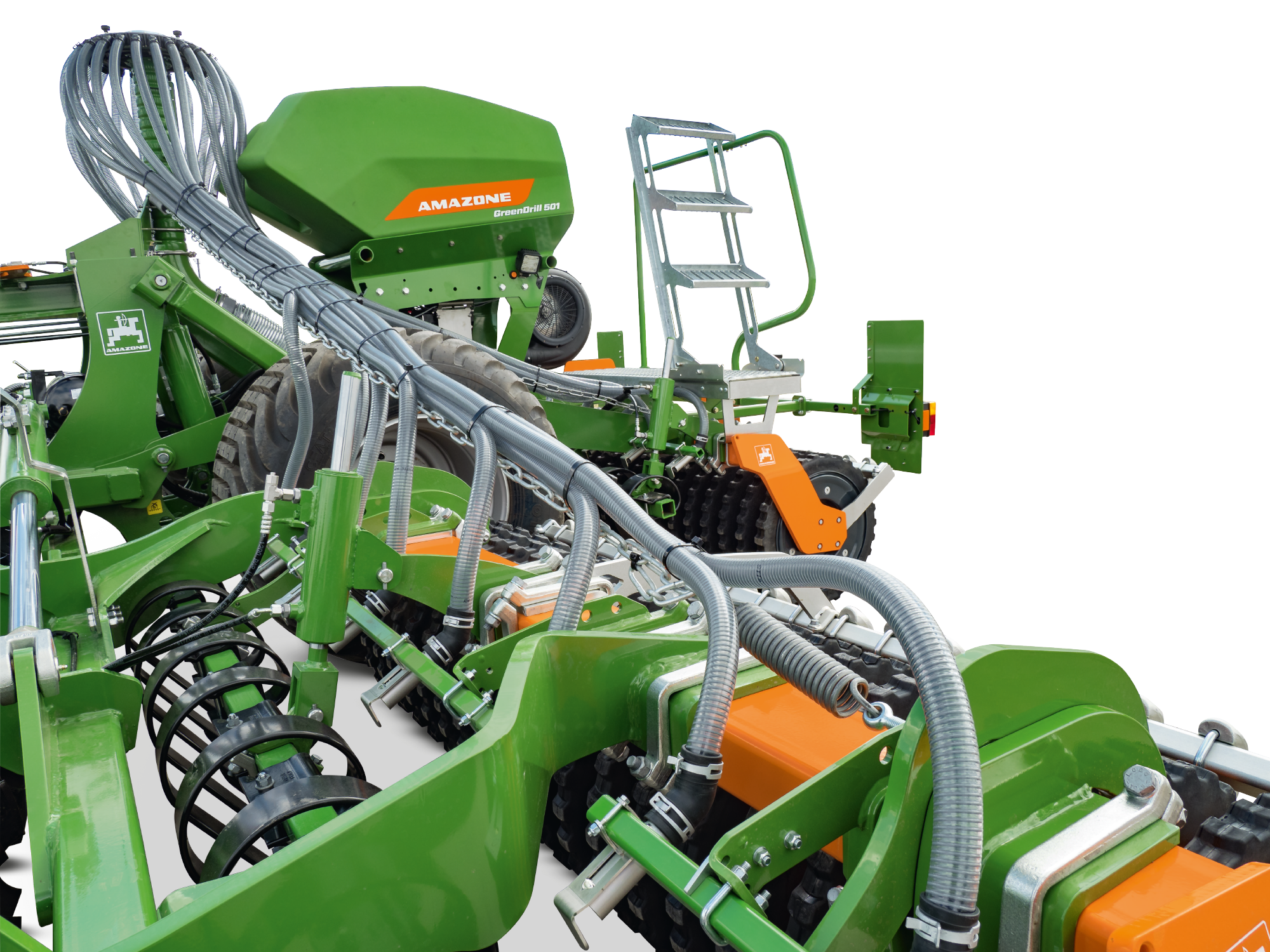

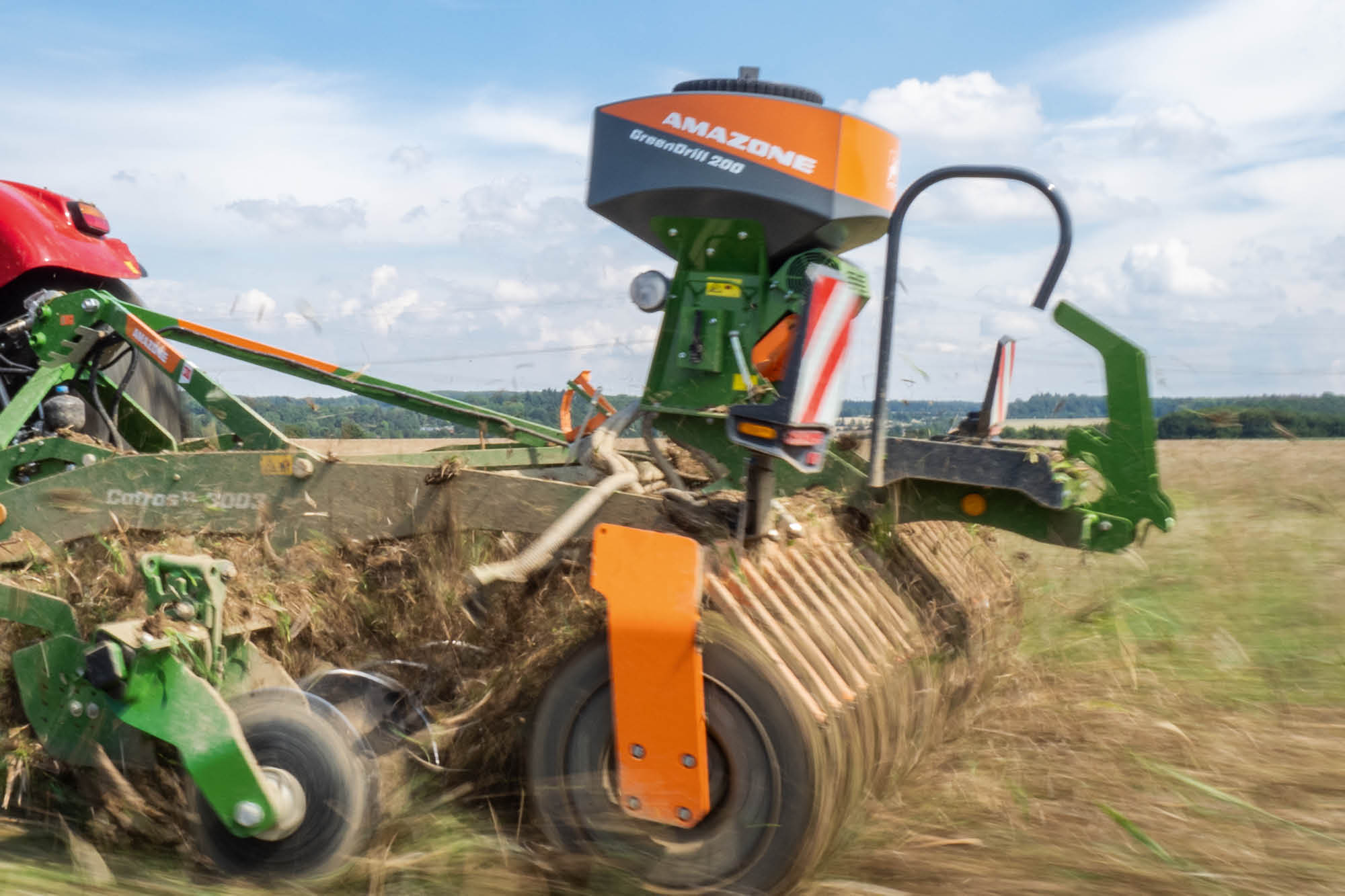

AMAZONE offers the GreenDrill 200 Pack top seed drills for the mounted models and the GreenDrill 501 for the trailed machines that enable the direct establishment of catch crops in combination with a soil tillage machine. The GreenDrill seeder boxes have a capacity of either 200 l or 500 l and are easily accessible via steps.

The benefits

• Applying catch crops and fine seeds directly in combination with soil tillage
• Large application rates are also possible by means of different metering rollers
• Wide distribution via baffle plates
• Safe and convenient access via steps
• Precise metering with excellent lateral distribution
• Comfortable machine control via ISOBUS (GD 501) possible, thereby enabling part-area, site-specific processing of application maps
• Easy machine control via the 5.2 in-cab terminal

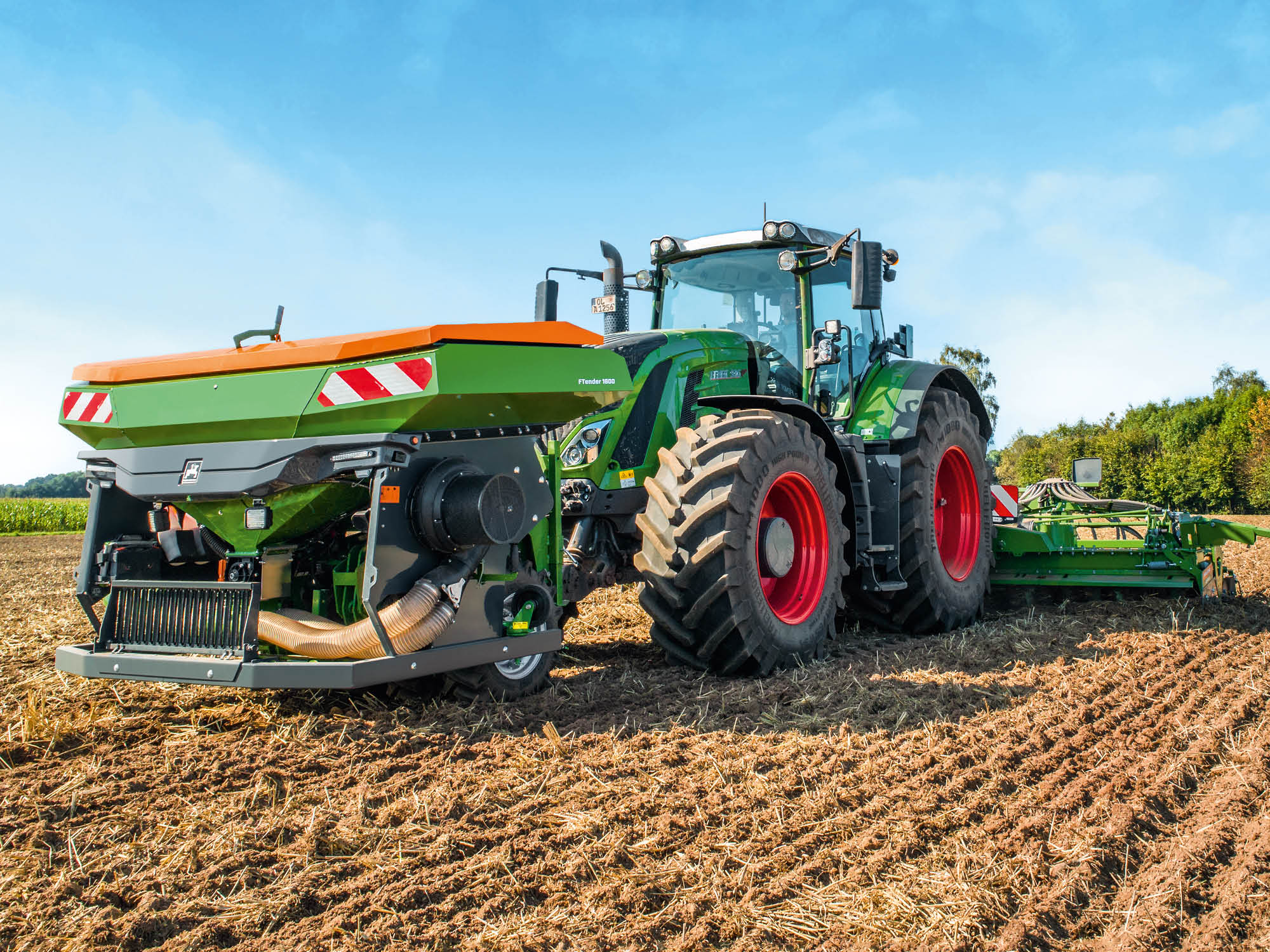

AMAZONE offers a universal mounted front hopper for versatile use in combination with seed drills and soil tillage equipment in the shape of the FTender with a capacity of 1,600 or 2,200 l.

Thanks to their complete ISOBUS integration, the hoppers can be operated via the ISOBUS operator terminal. The application rate can even be provided via an application map on a part-area, site-specific basis as well as being used in combination with GPS-Switch (SectionControl).

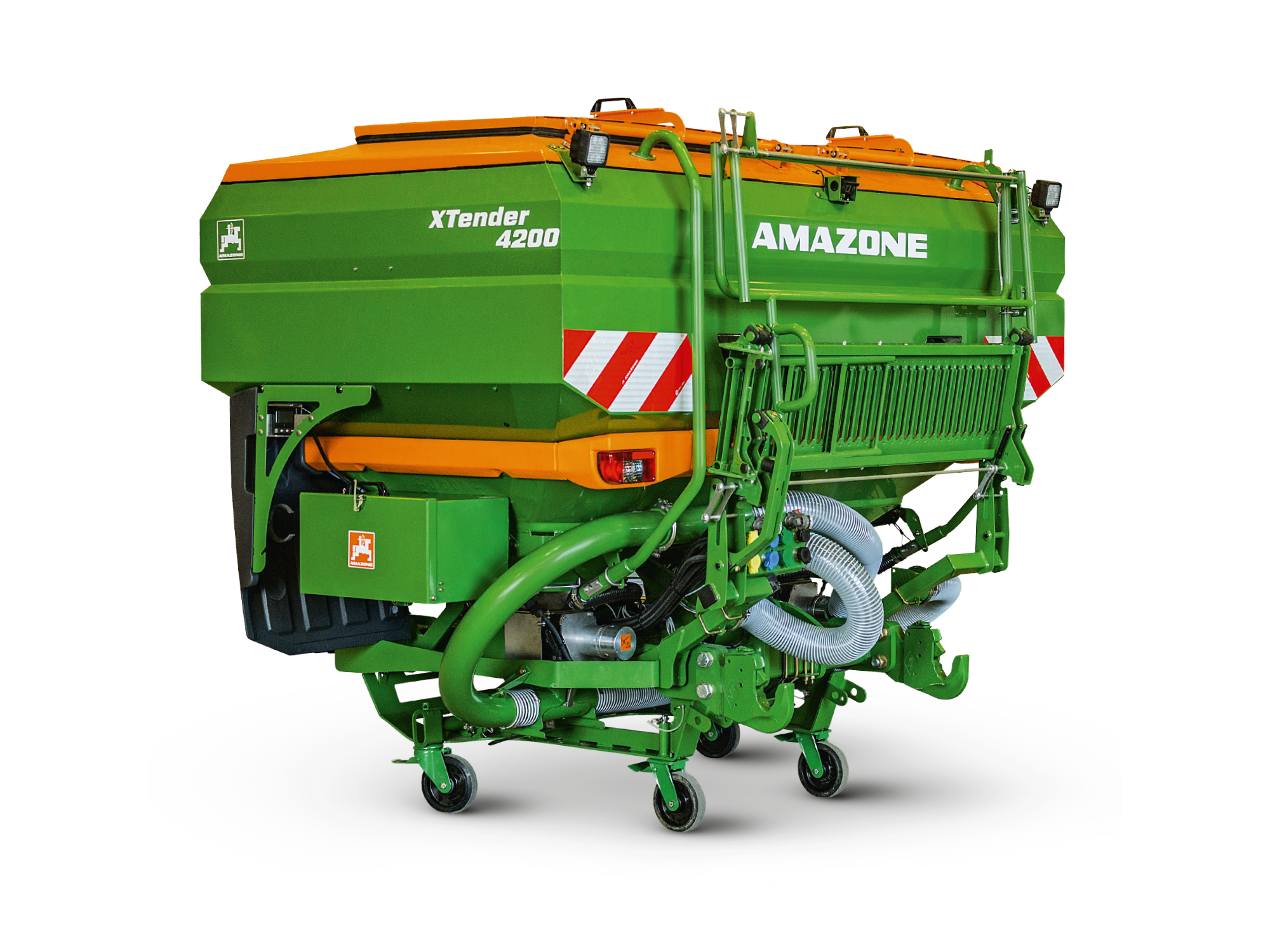

AMAZONE also offers two rear hoppers with a capacity of 4,200 l in the shape of the XTender (mounted) and the XTender-T (trailed). Both rear models also feature a divided pressurised hopper with a 50/50 split, so that two different materials, such as fertiliser and seed, can be applied simultaneously.

Advantages of conveying systems with a segmented distributor head

• Highly efficient as a result of the large hopper capacity
• Lower machine costs owing to more flexibility and more applications
• Precise working due to completely integrated ISOBUS control
• Easy access via loading board
