Running gear | Drawbar | Steering

Chassis of choice

The width adjustable axle can be specified unbraked or equipped with a dual-circuit compressed air, or hydraulic braking system, as required. The track width can be infinitely adjusted to between 1.50 and 2.25 m. 40 km/h type approval on request.

More information + Less information -

For any linkage, the right drawbar

SelfTrail and UniTrail steering systems react directly to the steering action of the tractor. The following sprayer axle oversteers by a little when coming in into the turn. The tracking quality is completely independent from forward speed.

More information + Less information -

SelfTrail drawbar steering

A simple, sturdy drawbar is provided that gives continuous track following operation.

  • For road transport - non-steered - up to 25 km/h
More information + Less information -

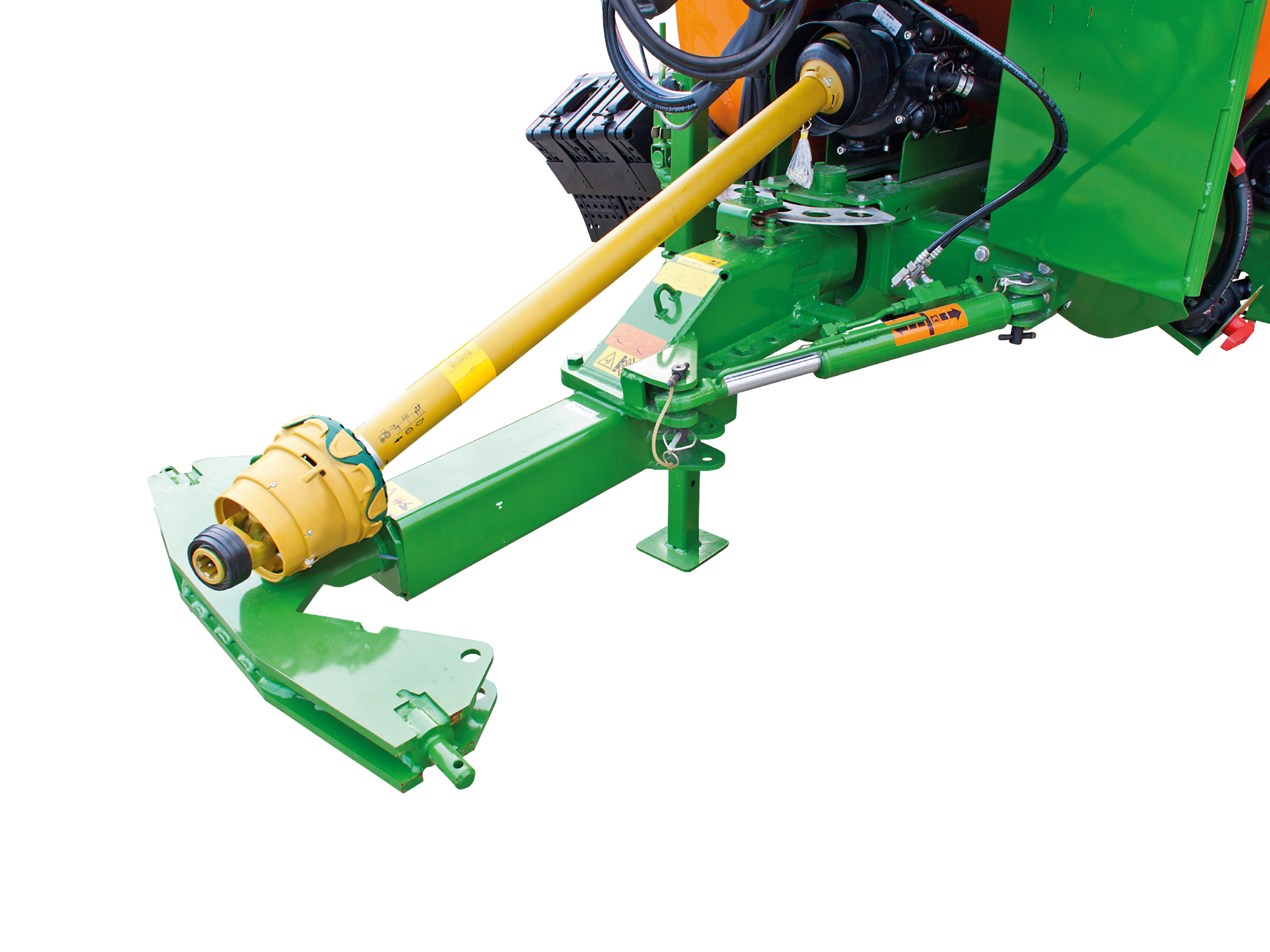

UniTrail drawbar steering

The UniTrail steering system can be quickly converted ready for road transport. In the transport position it is possible to drive safely at speeds of up to 40 km/h without a problem. Optionally, a hydraulic drawbar steering is available for when working across slopes.

  • For road transport - non-steered - up to 40 km/h
More information + Less information -

Quick on the road – excellent in the field

AutoTrail steering systems are software-controlled and can be calibrated precisely to give near-perfect track following. In work, the steering system can either be manually overridden or switched off via the AmaPilot multi-function joystick.

More information + Less information -

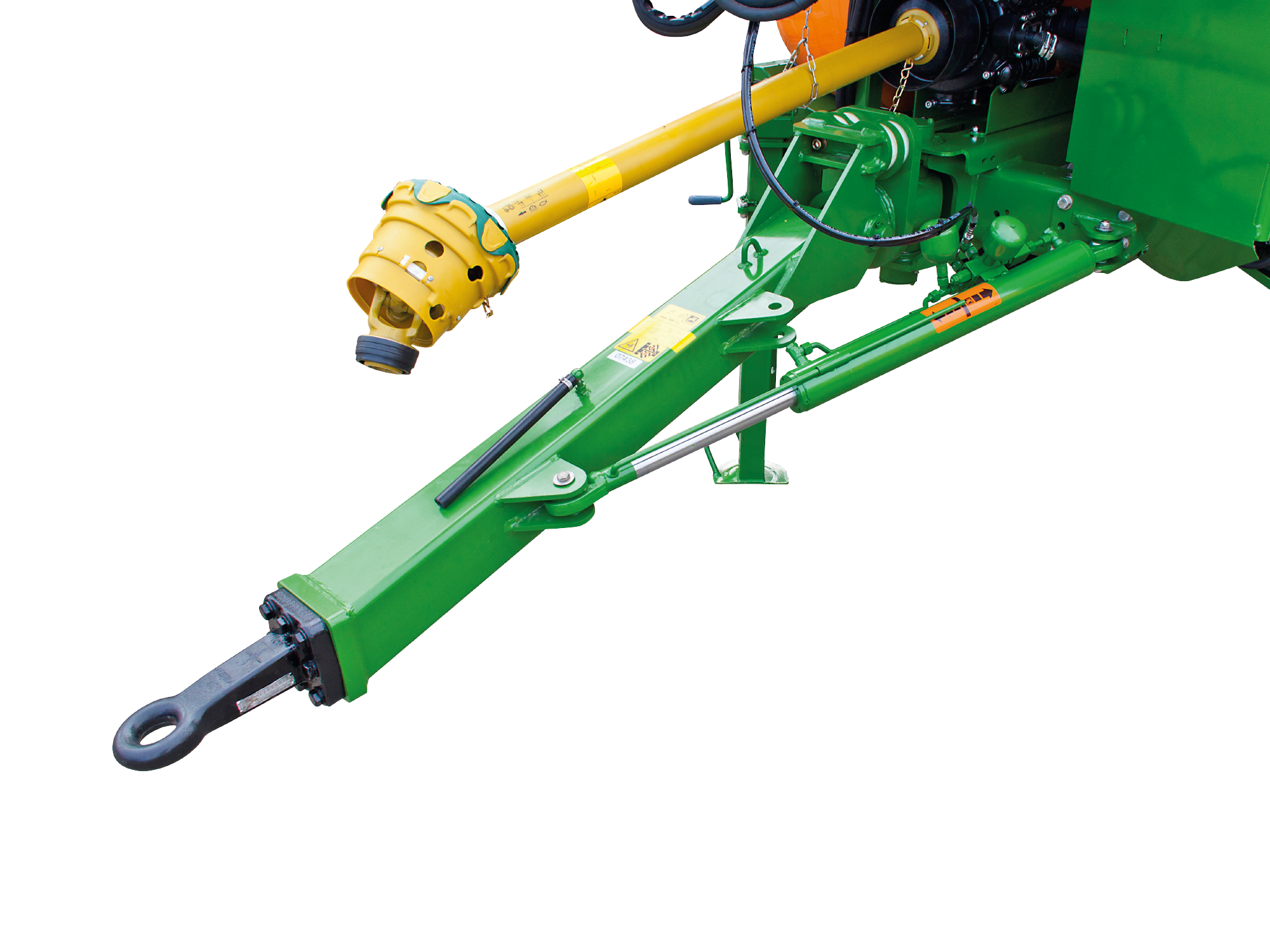

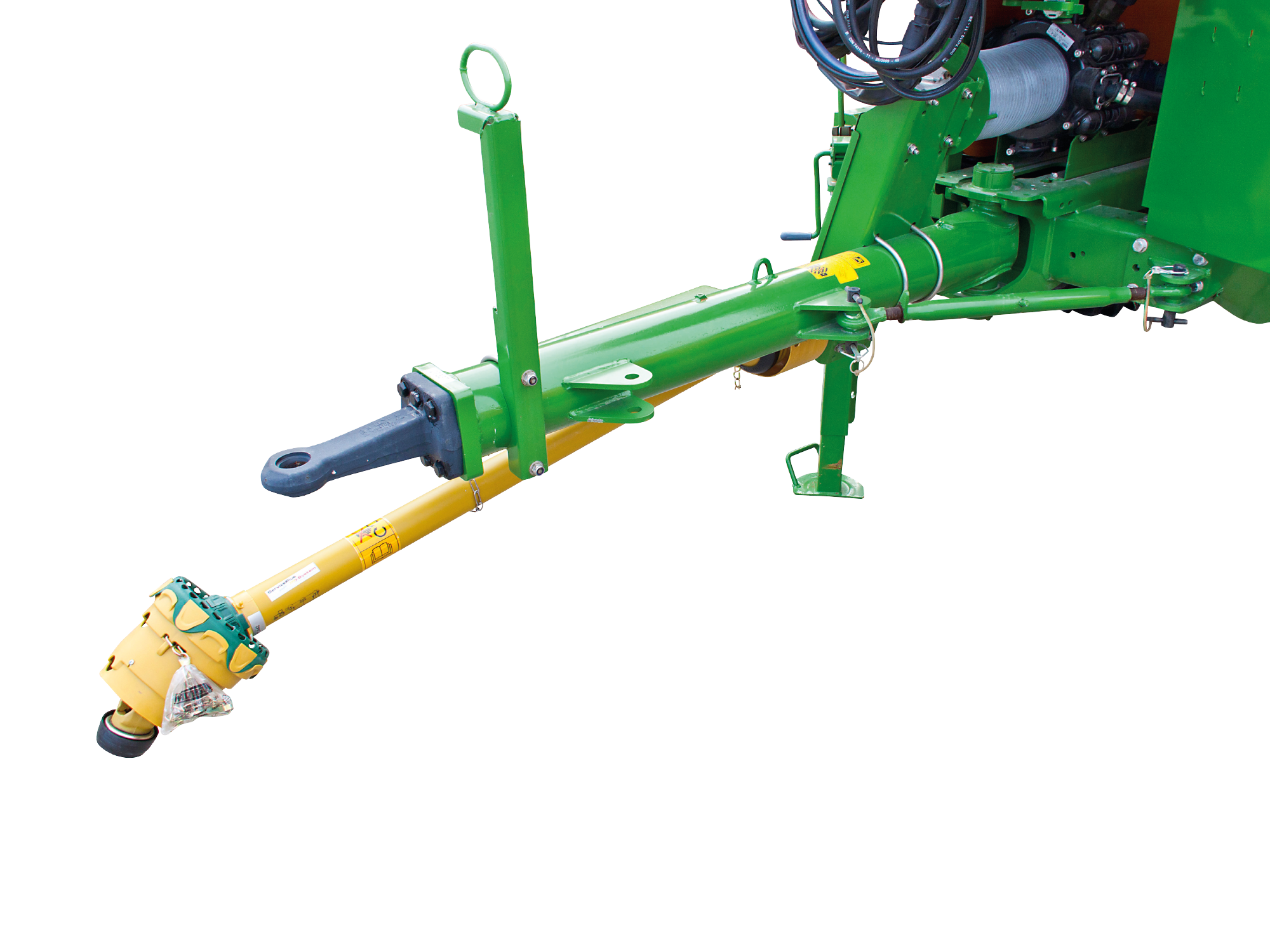

AutoTrail drawbar steering

AutoTrail drawbar steering is available for both the straight drawbar and the hitch drawbar. A variety of towing eyes offer a solution to all tractor drawbar options.

  • For road transport - non-steered - up to 40 km/h
More information + Less information -

As an alternative ...

... to the automatic slope correction adjustment with AutoTrail, there is on this drawbar also a manual hydraulic drawbar steering system for slope correction.

  • For road transport - non-steered - up to 40 km/h
More information + Less information -
