Overview of the Super-L3 booms

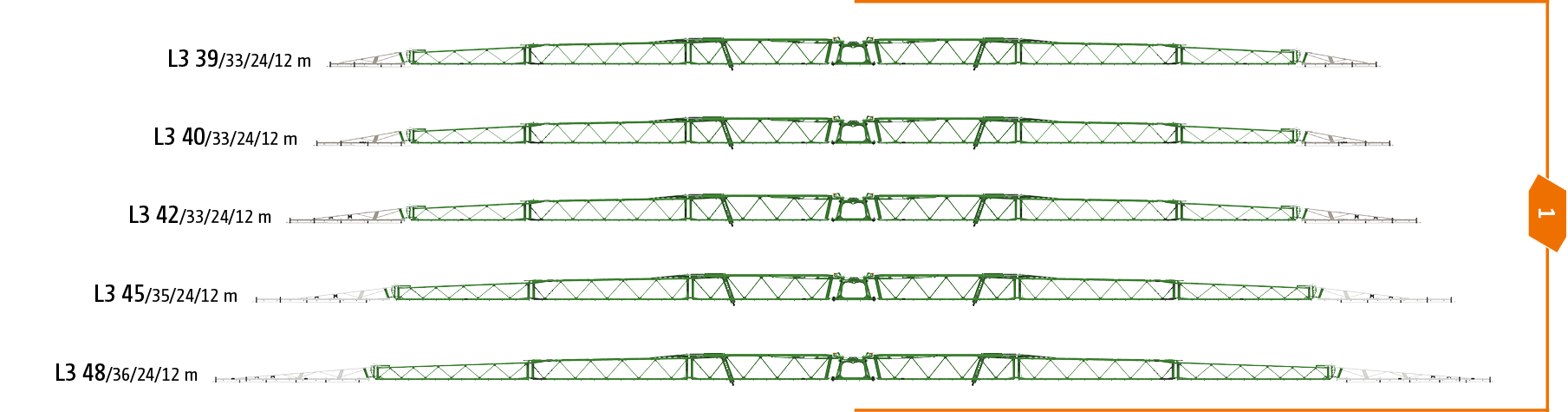

Super-L3 boom in widths from 39 to 48 metres
For maximum stability and a low nett weight, the profiles of the penultimate section of the Super-L3 boom are made of aluminium for boom widths of 45 m and of carbon fibre for boom widths of 48 m.
Always the best level of equipment
The Super-L3 booms from 39 m and upwards are equipped as standard with ContourControl active boom guidance, SwingStop plus boom tip swing compensation and either AmaSwitch plus or AmaSelect individual nozzle control with DUS pro.
The over-engineered boom sections, with hydraulically pressurised break back joints in the boom ends, ensure an absolutely smooth boom ride under any conditions. If any vibrations caused by cornering or acceleration occur in spite of the massive design, they are directly reduced by SwingStop plus.

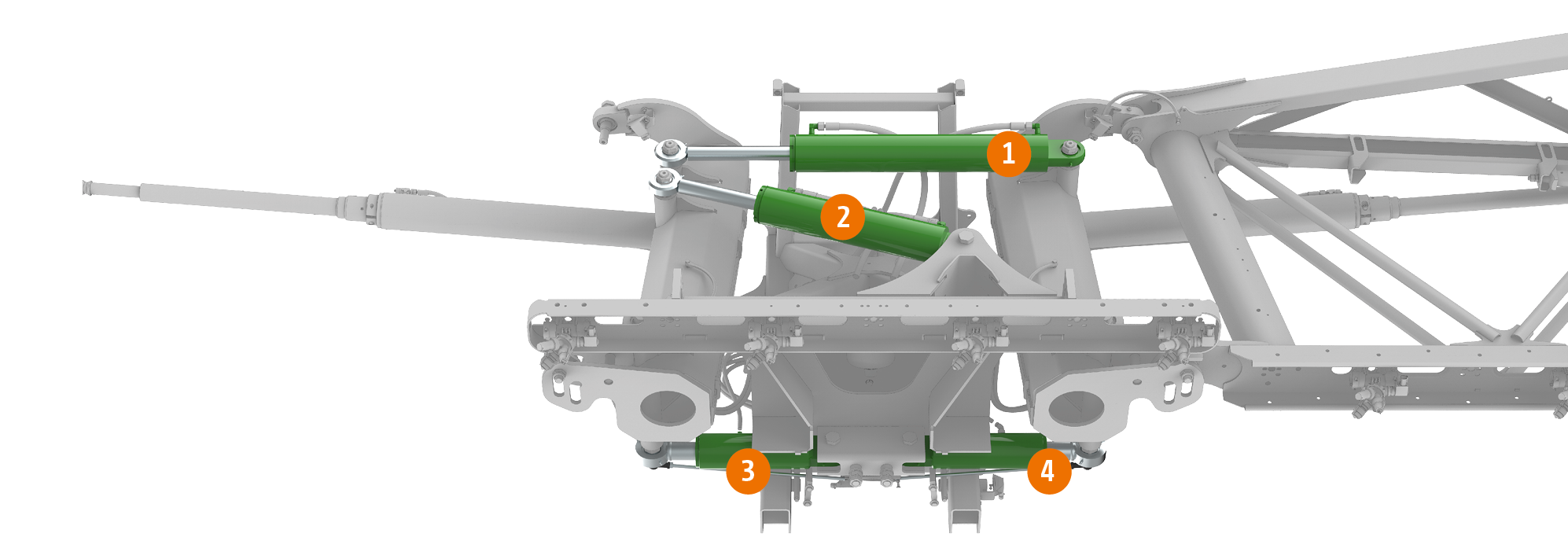

1. For all UX 01 Super models
- Positive angling cylinder: Positive and negative angling of the right-hand boom section
- Tilt cylinder: Tilt adjustment of the entire boom in conjunction with the angling cylinder (1) Positive and negative angling of the left-hand boom section
- SwingStop plus cylinder, left: active swing compensation of the left-hand boom section
- SwingStop plus cylinder, right: active swing compensation of the right-hand boom section
