With the KX Cultimix rotary cultivator, in a 3 m working width and for tractors in the 190 hp class, a very flexible PTO-driven soil tillage implement now exists that can be used as a rotary cultivator or as a rotary harrow.

The KX Cultimix rotary cultivator is ideally suited for seedbed preparation on medium to heavy soils.

More...

The KG Special rotary cultivators, in working widths of 3 m, 3.5 m and 4 m, are ideally suited for seedbed preparation on heavy soils and for mulch sowing.

The KG Super, in 3 m, 3.5 m and 4 m working widths, is equipped with a high capacity gearbox for tractor horsepowers of up to 300 hp. The KG Super has reinforced tines as standard and can be ordered with hydraulic depth adjustment and oil cooler as options.

More...

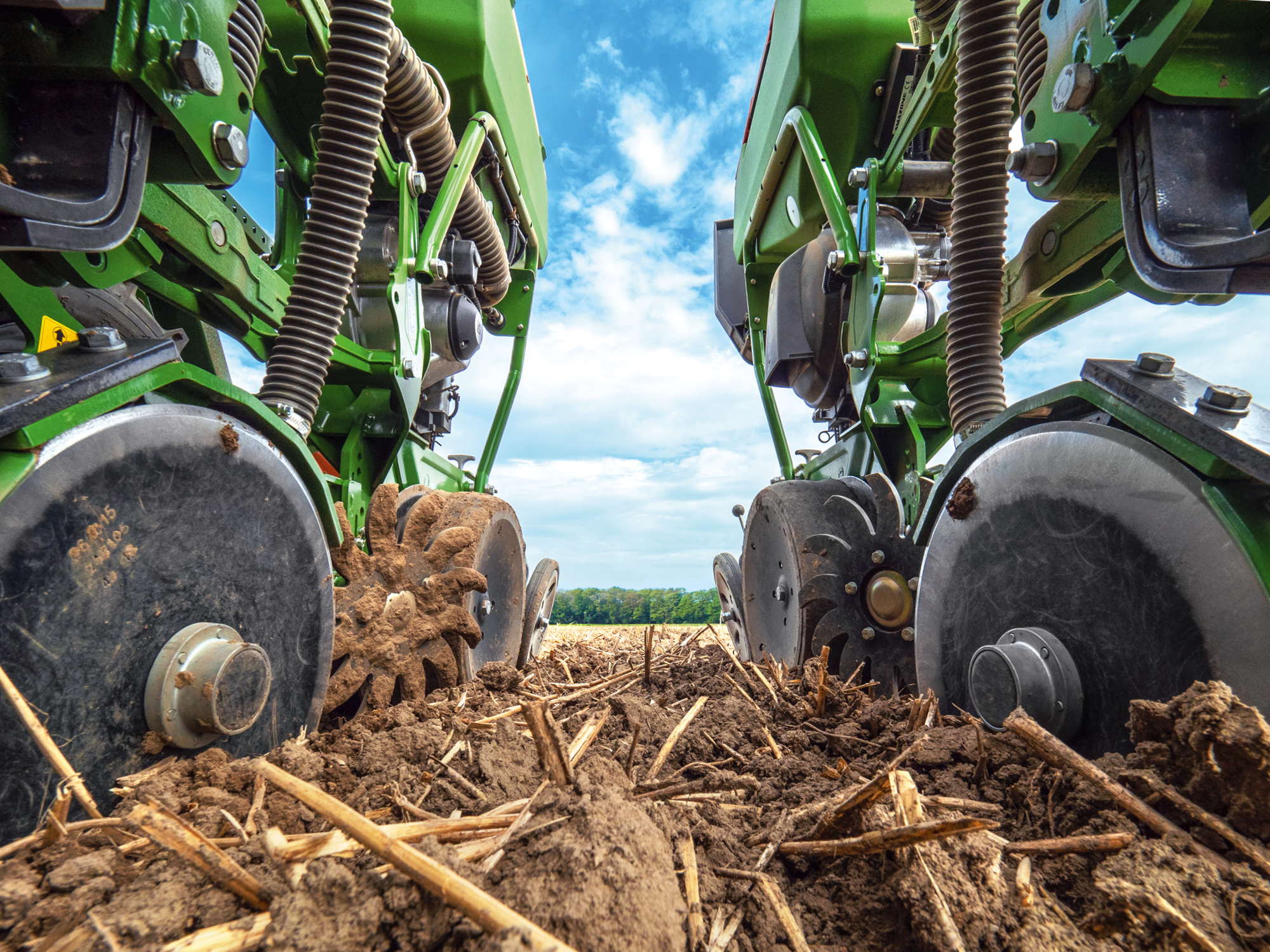

The high-capacity double disc coulter ensures clean and reliable placement. The double disc coulter runs smoothly and deposits the fertiliser in front of the PreTeC mulch coulter. The double disc coulter is completely maintenance-free and fulfils the highest demands.

The benefits:

• Reduced soil throw ensures a very smooth running
• High service life thanks to the rugged and proven large-area seed drills
• Stepless working depth adjustment
• Exchangeable protection plate

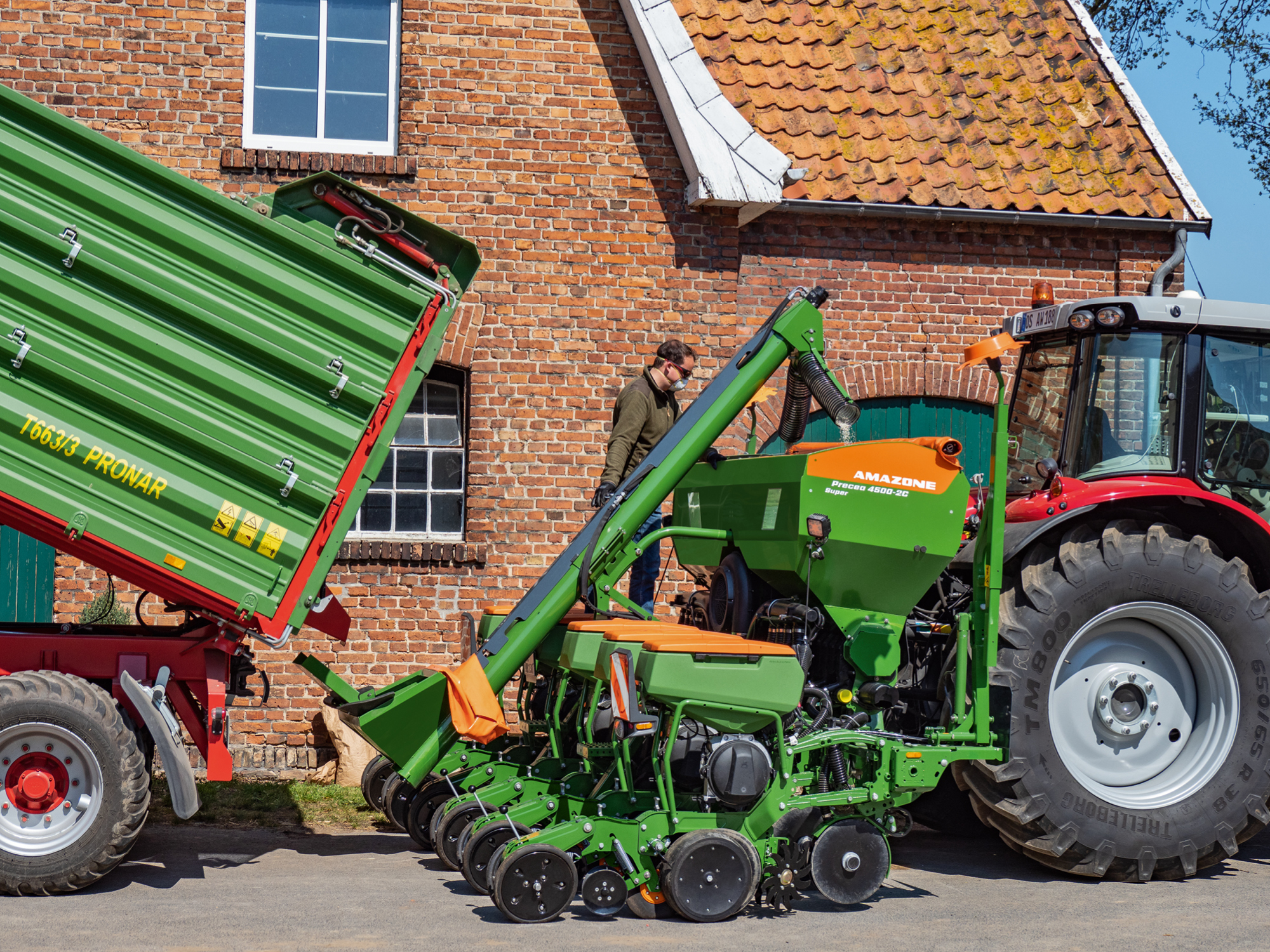

Fertiliser hoppers of 950 l or 1,250 l equip the Precea with sufficient capacity. The hopper is located well forwards and thus provides an optimal centre of gravity near the tractor. Steep hopper walls guide the fertiliser safely to the metering units and keep the residual volumes low. Operation and adjustment are performed centrally, on the left side of the SmartCenter.

The benefits:

• Convenient access, ideal also for filling by big bag or via a front end loader bucket
• Low lifting power requirements due to optimal centre of gravity of the machine
• Simple filling due to generously dimensioned hopper opening
• Large sight glass

The Precea Super version has ElectricDrive electric centralised singling drive and an electric fertiliser metering drive to provide maximum convenience. Due to the electrical metering and centralised singling drive, the quantity of seed or fertiliser can be very quickly and easily changed in the operator terminal. At working speeds of up to 15 km/h, the Precea impresses with its high work rates.

Precea 3000 Super

• Number of rows: 4, 5, 6
• Frame execution: rigid

Precea 3000-A Super

• Number of rows: 4, 5, 6
• Frame execution: mounted

Precea 4500 Super

• Number of rows: 5, 6, 7, 8
• Frame execution: rigid

Precea 4500-2 Super

• Number of rows: 6, 7
• Frame execution: single, 2-fold and variable telescopic function

The electric fertiliser metering drive ensures maximum convenience with maximum precision. The drive is perfectly matched to the terminal or TwinTerminal, thus operation and adjustment are simple and convenient.

Advantages of the electric fertiliser metering drive:

• Convenient setting and adjustment via the operator terminal
• Convenient calibration by using the calibration button on the SmartCentre

The mechanical drive with the stepless Vario gearbox enables the very simple and central setting via the SmartCenter on the machine.

Advantages of the mechanical fertiliser metering drive:

• Convenient setting of the Vario gearbox on the SmartCentre
• Simple calibration of the application rate on the SmartCentre

Thanks to the QuickLink quick release coupling system on the Precea-A, this precision air seeder can be easily and quickly linked to the various AMAZONE seedbed cultivators without the need for tools.

Depending on the choice made, the hydraulic system is available in two versions. There is the entry-level standard hydraulics, where every function has to be actuated from a spool valve on the tractor. For tractors with a limited number of spool valves, the Comfort hydraulics can be selected. Here the functions of wing and track marker folding can be combined via an electric changeover valve supplied by one spool valve.

Advantages of the comfort hydraulics:

• Fewer spool valves required
• Increased operational comfort through preselection of the function in the ISOBUS machine actuation
• Simple and fast change of any function

The Precis fertiliser metering system equips the Precea with an accurate and reliable metering drive. The additional air support further ensures an equal feed to each row and reliably prevents blockages. The fertiliser granules are reliably conveyed to the FerTeC Twin double disc counter.

1. Fertiliser
2. Air flow

The benefits:

• High work rates with up to 250 kg/ha at 15 km/h
• Comfortable setting of the application rate
• Uniform supply to all coulters with one metering unit per fertiliser coulter
• Air diffuser on each row minimises blockages
