Citan trailed seed drill

For the operation on light or unconsolidated soils, as an option, tractor wheel mark eradicators are available. The wheel marks are loosened and levelled. The lowering and lifting on the headland or when folding for transport is provided automatically by hydraulic actuation.

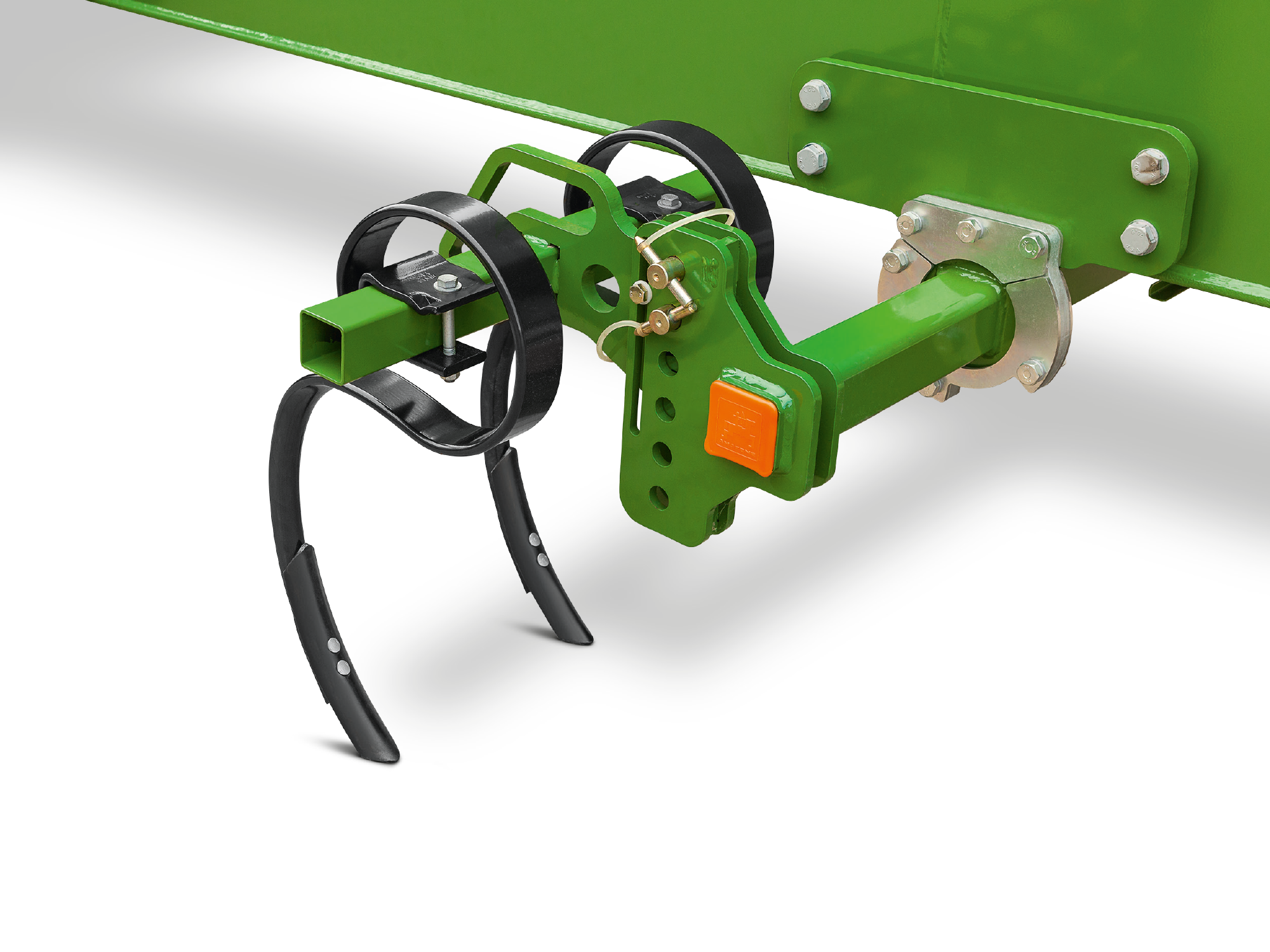

The task of the seed drill wheel mark eradicators is to loosen the compacted tracks behind the seed drill tyres. The seed drill wheel mark eradicators can be adjusted both horizontally and vertically. The special kinematics of the eradicators provides a constant spring force over the entire area of deflection. The choice of points includes a narrow point, a diamond point and a wing point.

1. Narrow point
2. Diamond point
3. Wing point

The high-capacity oil cooler prevents any overheating of the oil circuit. At the same time the blower fan of the seed drill sucks in air for the seed transfer system through the fins on the cooler. The heated air effectively prevents the sticking of seed and fertiliser at high application rates and in wet weather.

Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages down at the coulter and in the seed tube. Mounted directly behind the distributor head, sensors monitor the seed flow in the seed pipes. The system automatically detects when the drill is tramlining.

To be able to ensure the required oil flow for the hydraulic blower fan, especially when used behind tractors with poor hydraulic capacity, AMAZONE offers an on-board hydraulic system with an oil tank on the seed drill and a separate hydraulic pump as optional equipment. It can be quickly and easily attached to the PTO shaft of the tractor.

The right solution for any requirement

• Tight turning with the Citan on the headland

The Citan road transport lighting meets all road traffic requirements for transport safety.

LED work lights
The Citan is also available with high-performance LED work lights.

The options:

• Self-contained 2-fold LED work lights with their own power supply and switch
• Integrated 4-fold LED work lights, controllable via the ISOBUS machine actuation

For operation on deeply loosened soils with low carrying ability, AMAZONE offers a second guide wheel set for better load distribution (standard on the 15001-C/optional on the 12001-C). Thanks to the improved load distribution, deeper wheel marks and at the same time harmful compaction are effectively prevented. In addition, a smoother and more precise run of the coulters in the row is achieved, so that the depth maintenance and the placement accuracy are increased.

A filling auger is also available as an option for the Citan trailed seed drill. The filling auger allows quick and easy filling directly from a transfer trailer vehicle.
