Metering | Conveying system

Accurate metering drive

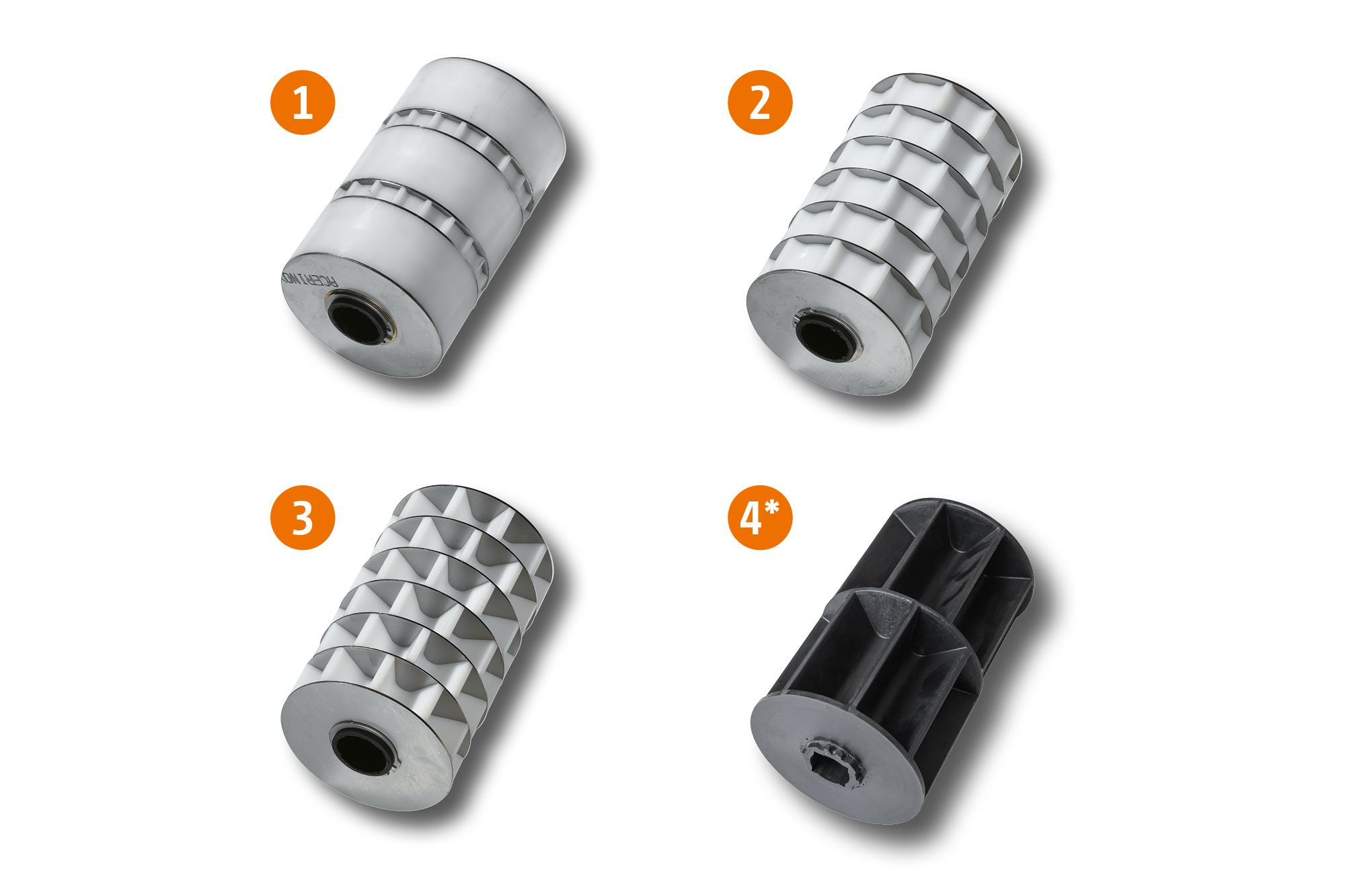

The metering system is suitable for all seeds and seed rates from 1.5 to 400 kg/ha. Large metering cassettes generate low peripheral speeds and protect the seed from damage. Conversion from fine seeds to normal seeds is carried out in seconds by exchanging the metering cassettes. They can even be changed when the seed hopper is full. The three metering cassettes supplied as standard cover up to 95 % of all seeds. Additional cassettes are available, for instance, for maize or specialist crops.

  1. 20 ccm, e.g. for rape, stubble turnips, lucerne
  2. 210 ccm, e.g. for barley, rye, wheat
  3. 600 ccm, e.g. for spelt, oats, wheat
  4. 660 ccm* e.g. peas and beans


* Only standard for the Cayena-C

More information + Less information -

Air diffuser

An air diffuser is used to maintain the seed flow when sowing mixtures with widely differing specific weights and volumes (light seed/heavy fertiliser). The air stream from the blower fan is self-regulating thus preventing the need for readjustment or the blowing out of any lighter material.

More information + Less information -

Pre-emergence markers

The pre-emergence markers clearly mark the tramlines via large discs so that the tramlines are visible prior to the seed emergence. This improves the accuracy when creating tramlines and they are ideal for pre-emergence spraying.

More information + Less information -

The basic settings

The Cayena is carried via the tractor’s lower links and the wedge ring tyres. Guide wheels, available as an option and mounted in front of the tine coulters, help provide a smooth run, even at high sowing speeds.

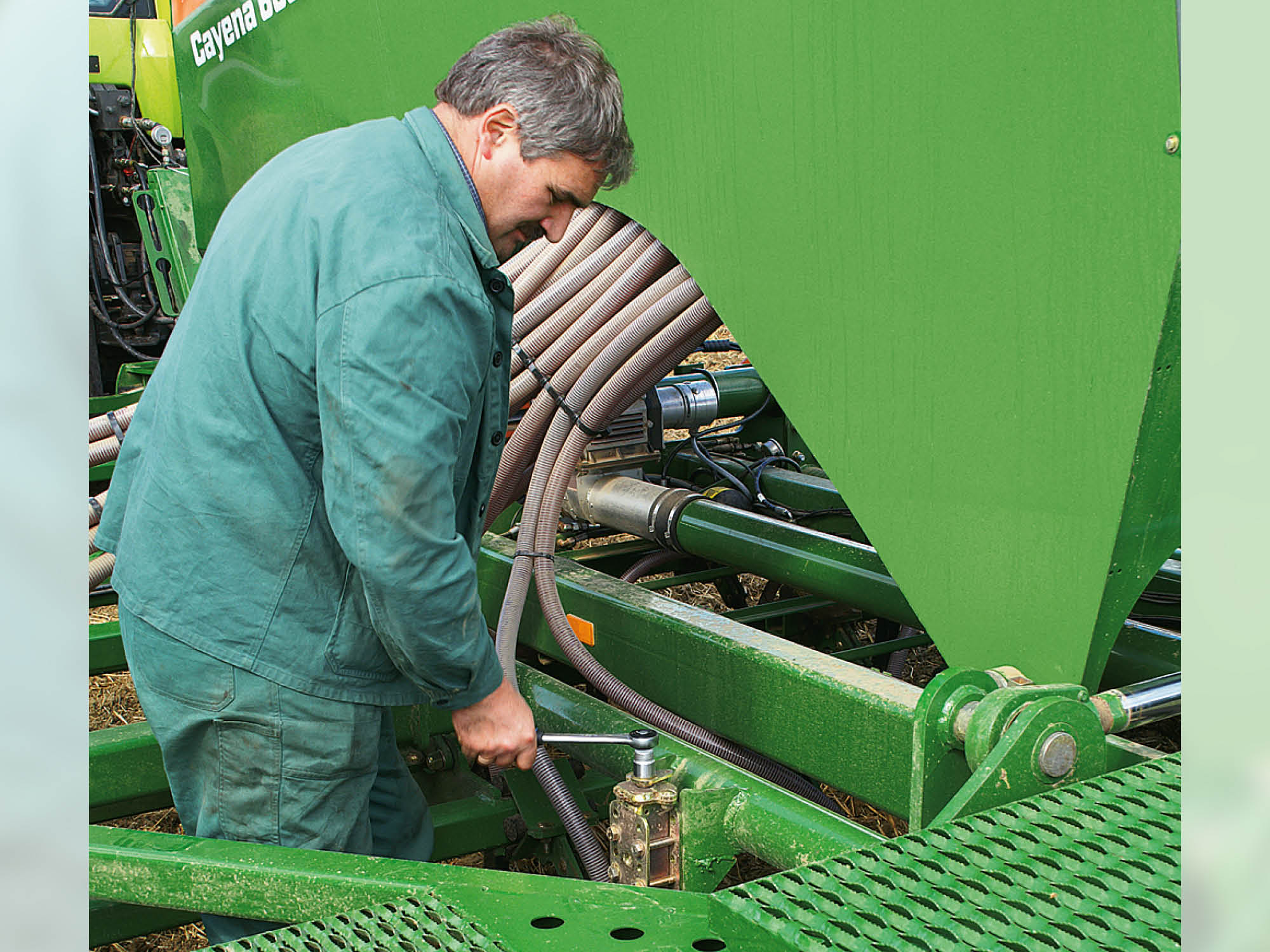

The placement depth of the seed is easily adjusted via turnbuckles. The Exact S following harrow is just as easily set up to ensure perfect seed embedment, once done you’re ready to go.

More information + Less information -
