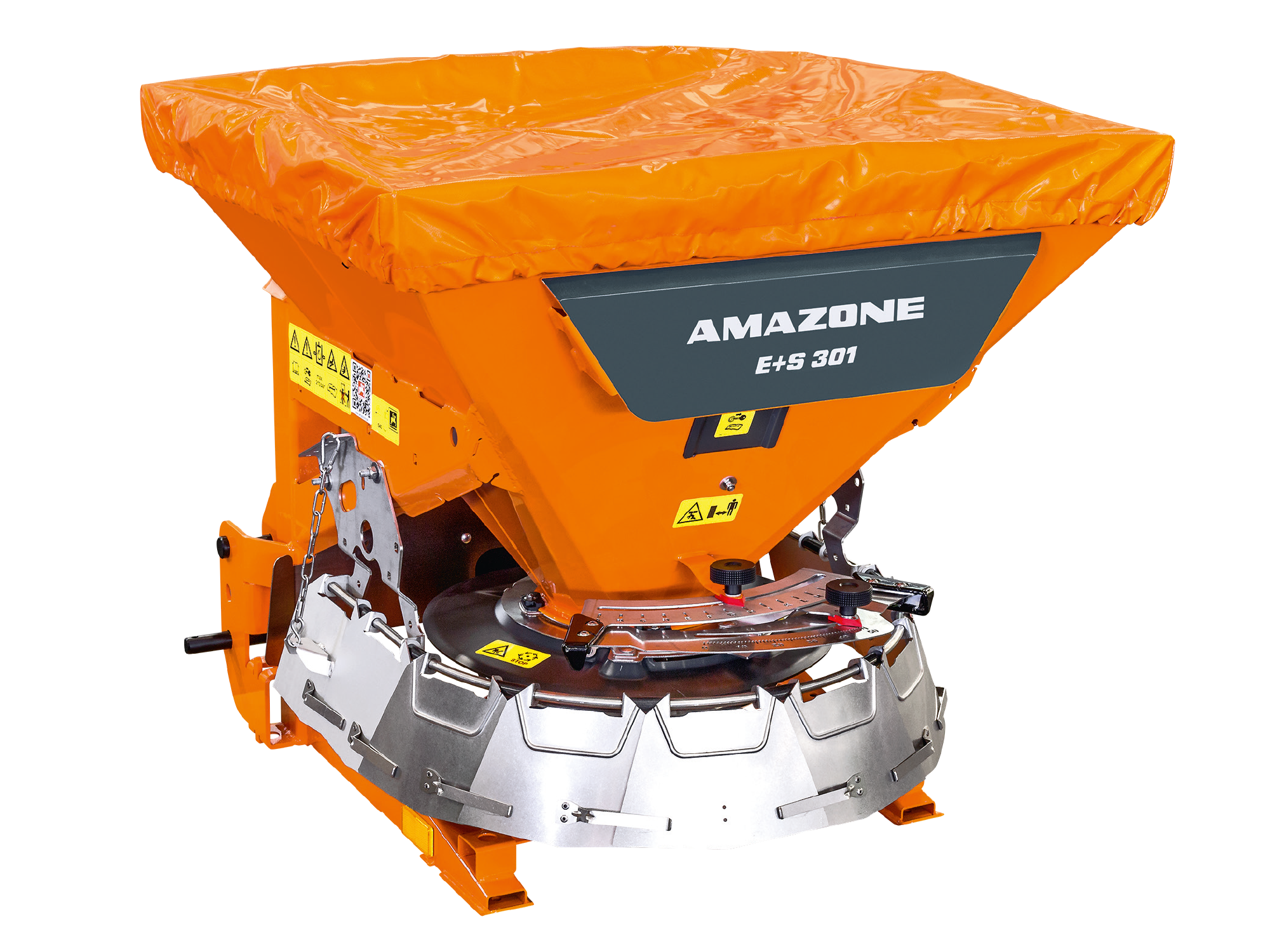

E+S mounted spreader

In the event of snow and ice in winter, both the E+S and EK-S facilitate the reliable spreading of salt, sand or grit. These robust spreaders deliver precise results in work meaning safe driving on gritted roads and lanes.

However, the mounted spreaders can also be used effectively during the rest of the year: on lawns for spreading sand, on sports fields for spreading ash or for spreading gravel on footpaths. Year-round use makes the spreaders particularly cost-effective – the right solution for every operation.

Thanks to their robust design, the spreaders can cope with any material – the spreading disc reliably spreads the pre-set rate to the desired working width.

Saving costs – protecting the environment

Standard features of the E+S include:

• Drive from choice via PTO shaft or hydraulics (E+S Hydro)
• Steep hopper walls for optimum flow of the spreading material
• Strong protective sieve inside the hopper
• Cat. 1 and Cat. 2 three-point linkage, easy mounting to the tractor
• Important parts such as the entire bottom assembly, spread pattern limiter, spreading disc and spreading blades are made from stainless steel
• SmartCenter for easy and precise setting of the spread fan
• The extremely corrosion-resistant cathodic dip painting process increases the service life of the spreaders (to automotive industry standards)
• Practical hose rail for the safe storage of the hydraulic hoses on the E+S Hydro

For a perfect spread pattern at any working width

A spreader unit in a class of its own

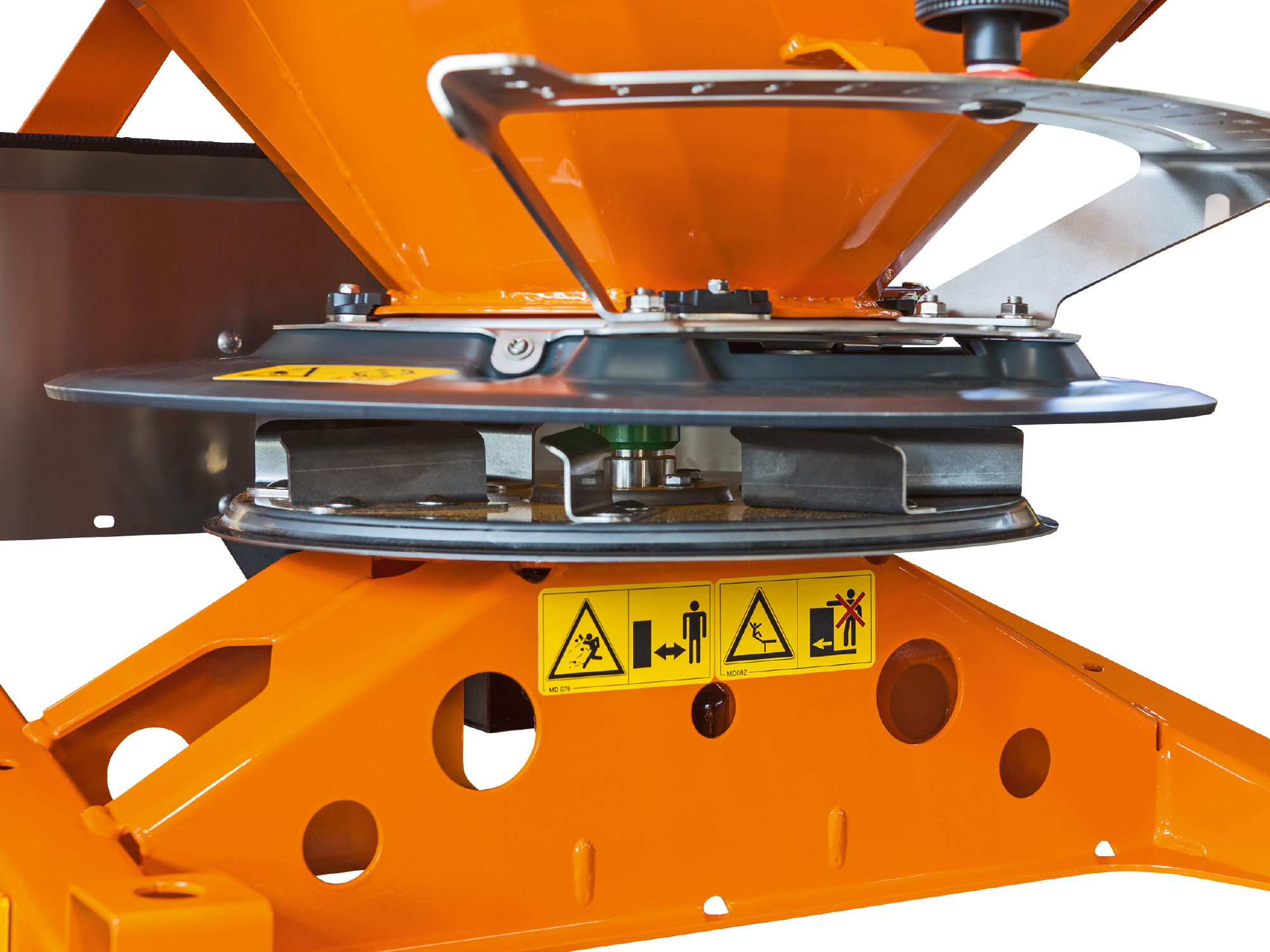

The E+S Hydro spreaders are equipped with a hydraulic spreading disc drive and speed-related spread rate control. As the spreading width is controlled via the speed of the hydraulically-driven spreading disc, the E+S Hydro can be precisely and infinitely variably adjusted over a wide spreading width range from 1 to 8 m. The precise hydraulic drive ensures the perfect spread pattern at any working width and reduces the formation of salt dust.

The reduction to a minimum of the rotational speed of the agitator, which is connected to the spreading disc, whilst the tractor stops is an additional advantage. In this way blockages and any bridging of the material in the hopper are effectively prevented.

The benefits:

• Hydraulic drive with infinitely-variable disc speed adjustment
• Improved longitudinal and lateral distribution
• Little formation of dust
• Automatically reduces the rotational speed of the agitator if the tractor stops

With more efficiency, precision and comfort

In wintry road conditions, traffic safety must be ensured. This requires the quick treatment of icy road surfaces. For this AMAZONE offers a professional spreader that precisely meters the optimum spread rates of de-icing and gritting materials.

Regular applications of sharp sand in small quantities prevent lawn surfaces from becoming compacted and, as such, stop the creation of layers that are impenetrable to water, nutrients and air.

The AMAZONE E+S spreader becomes the perfect machine for the application of sand - and without any conversion required. The sand is evenly incorporated into the lawn. Any additional sweeping and lifting of the grass is not necessary.

After periods of 2 to 3 years, red sports field ash should be freshly applied to hard courts.

With the AMAZONE E+S spreader, the ash is evenly distributed to level out undulations and to prevent the coarse sub layer from coming through.

The flexible drive concept, with a choice either PTO shaft or hydraulic motor, makes a wide range of application possible, whether in a conventional way behind the tractor or also mounted on a wheeled loader (E+S Hydro)*.

* The mounting frame cannot be purchased from AMAZONE

• For the winter application of salt, sand or grit
• For applying granular material
• For applying sand to golf and sports grounds
• For spreading red sports field ash

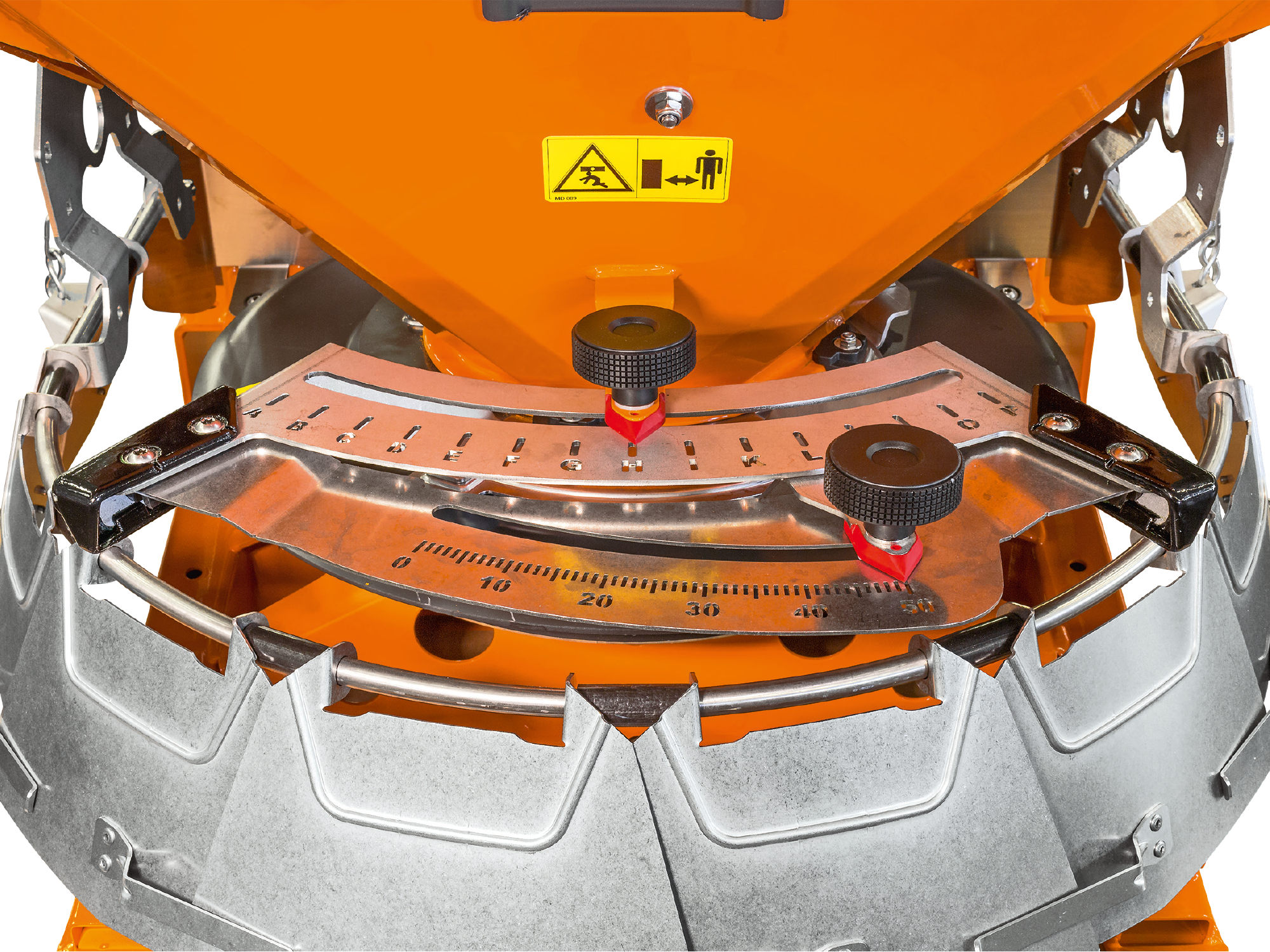

Thanks to the variable delivery system adjustment, the E+S can be set to either symmetrical or asymmetrical spreading. Via the SmartCenter, which is comfortably located to the rear of the spreader at the height of the hopper tip, the spread fan can be quickly and very precisely adjusted.

Because winter salt spreaders have to face such horrific demands, AMAZONE sets high standards during production. The hopper tip, made from stainless steel, for example, is joined to the hopper by the use of up-to-date technology that utilises a seamless laser welding process.

This high-class finish provides the AMAZONE spreader not only with a long service life but also with a high resale value.

Thanks to the comprehensive range of optional equipment, the E+S spreader is an especially capable spreader for use in any application.

• EasySet 2 in-cab terminal
• Robust mudguard helps protect the tractor

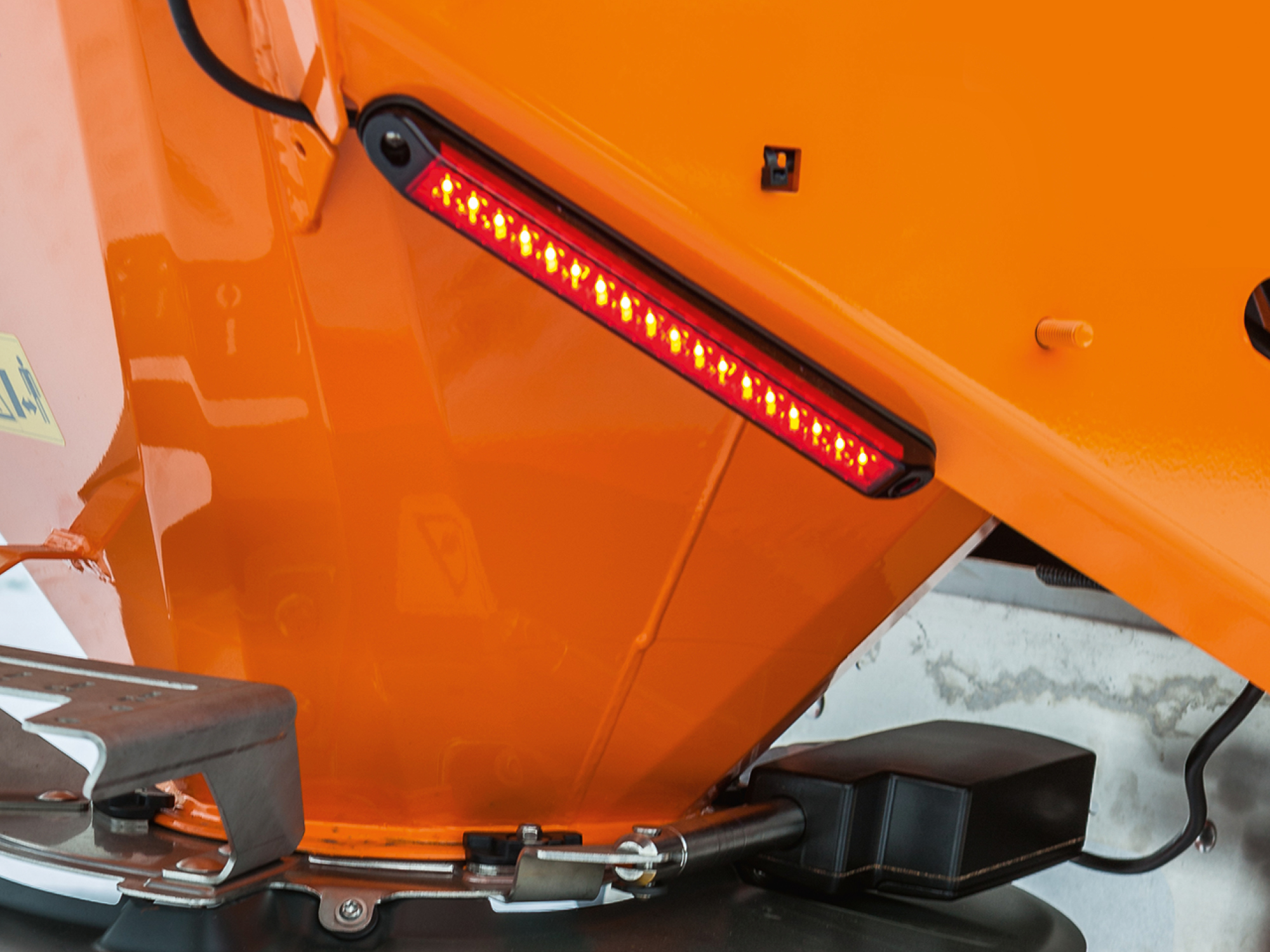

• LED lighting
• Hopper cover with inspection window
