ZA-TS 01 mounted spreader

Perfection in every component, just like clockwork

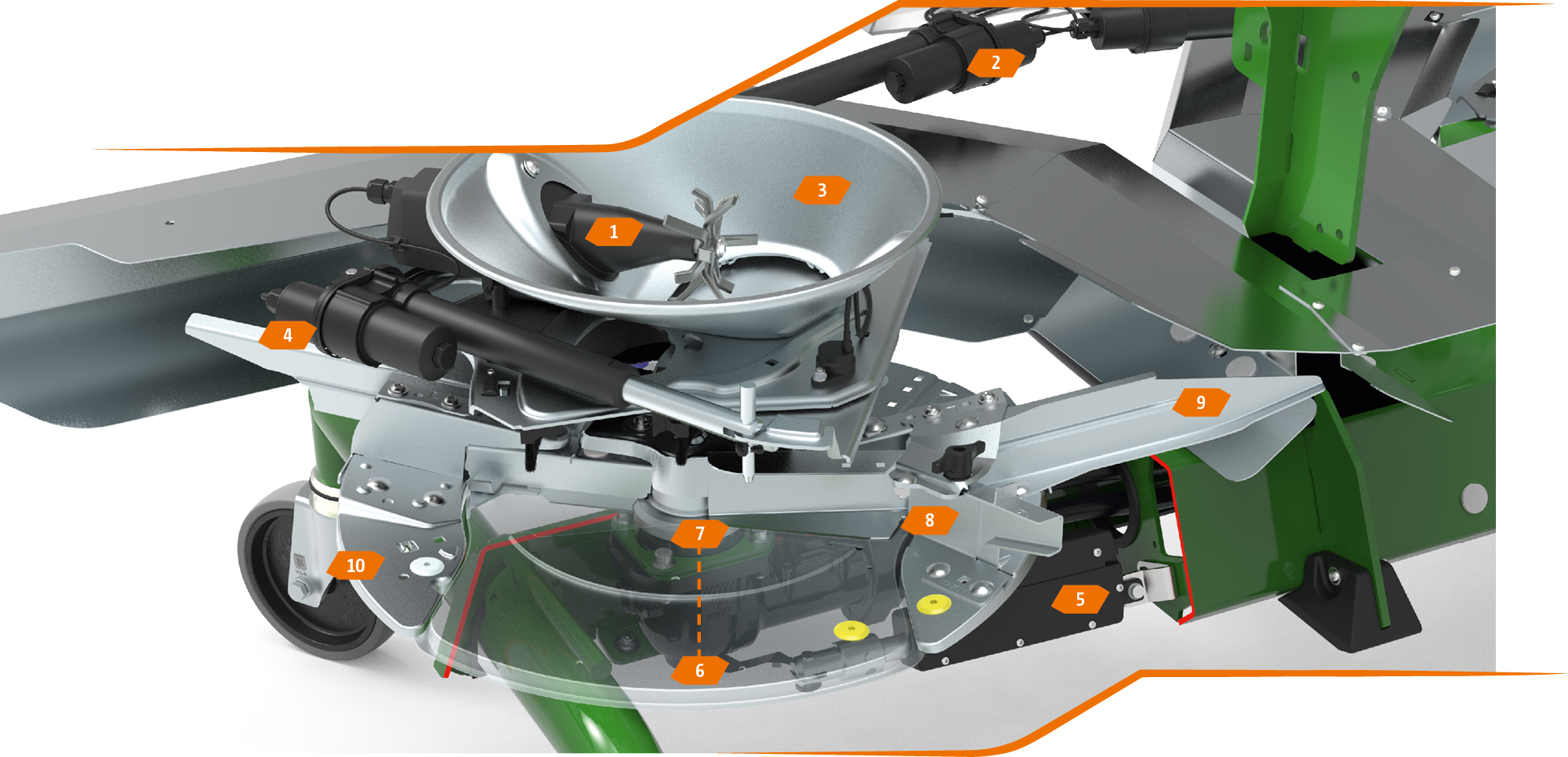

Delivery system adjustment of the TS spreading system
1) Intelligent agitator for maximum fertiliser protection
2) Electric actuator for rotating the delivery system
3) Delivery system for implementing Section Control and HeadlandControl, WindControl, CurveControl and AutoSpread functions

Bottom assembly of the TS spreading system
4) Electric actuator for precise fertiliser metering at application rates from 3 kg/min to 650 kg/min
5) Electric actuator for adjusting the carrier vane
6) AutoTS gearbox, the heart of the integrated border spreading system
7) Comfortable changeover between border spreading and normal spreading by moving the carrier vane
8) Short spreading vane for side spreading, border spreading and water course spreading
9) Long normal spreading vane for high throwing widths and double overlap, even at a working width of 36 m

TS spreading disc
10) TS stainless steel spreading disc, with only 3 easily interchangeable spreading vane sets: TS 10 HD, TS 20 HD and TS 30 HD for working widths from 15 to 54 m


The spreader automatically calculates the correct settings for the desired distance to the border and optimally synchronises the parameters. In addition, the delivery point is now also included in the settings. This enabled further optimisation of the border spread patterns, which were already very good.

The benefits

• Simple operation: set the distance to the field boundary and drive off – optimised border spread patterns and individually adjustable distance to the boundary
• Complete integration of the BorderTS border spreading system in the machine operation
• Complete and accurate documentation during border spreading – recording of the actual working widths

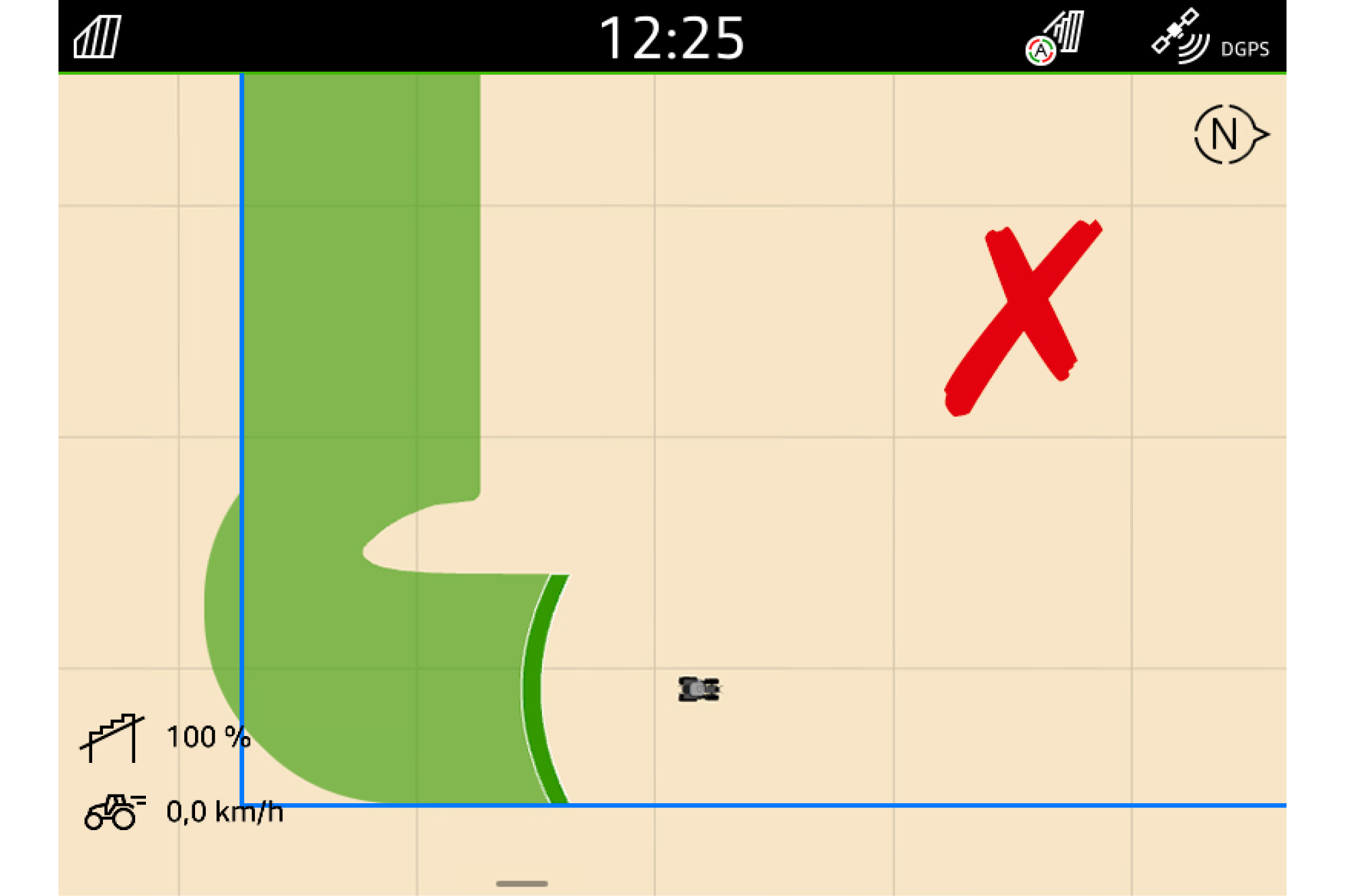

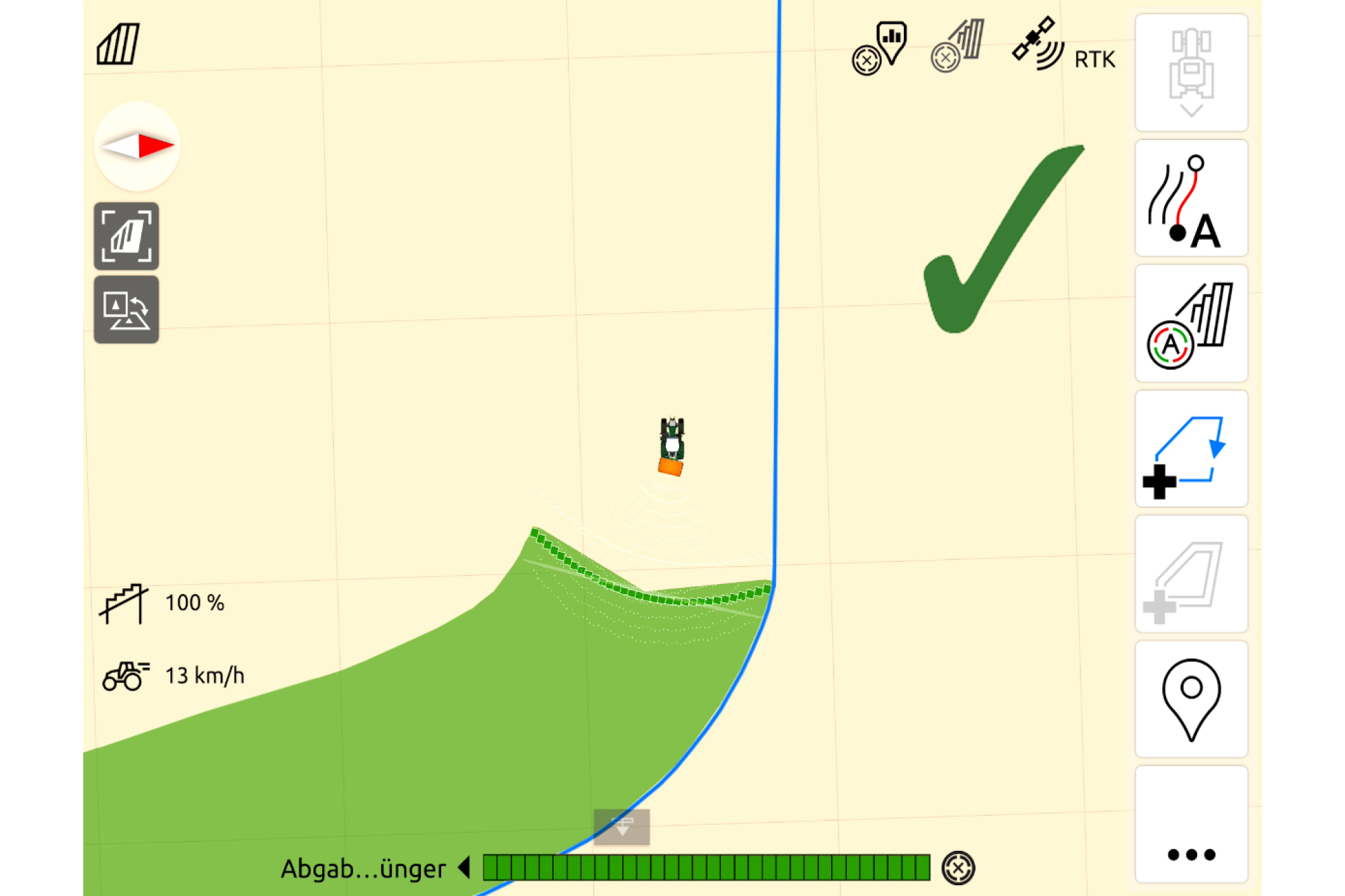

CurveControl adjusts the lateral distribution to the various cornering speeds and corrects the movement of the spread pattern when driving around bends.

The benefits

• Precise fertiliser application, even around curves, thanks to CurveControl
• No swinging out of the spreading pattern beyond the boundary
• Accurate documentation in the map view of the area worked, for more reliable Section Control* operation

*only in conjunction with AmaTron 4
