For Catros⁺-2TX and Catros⁺ 12003-2TS

Optimum contour following

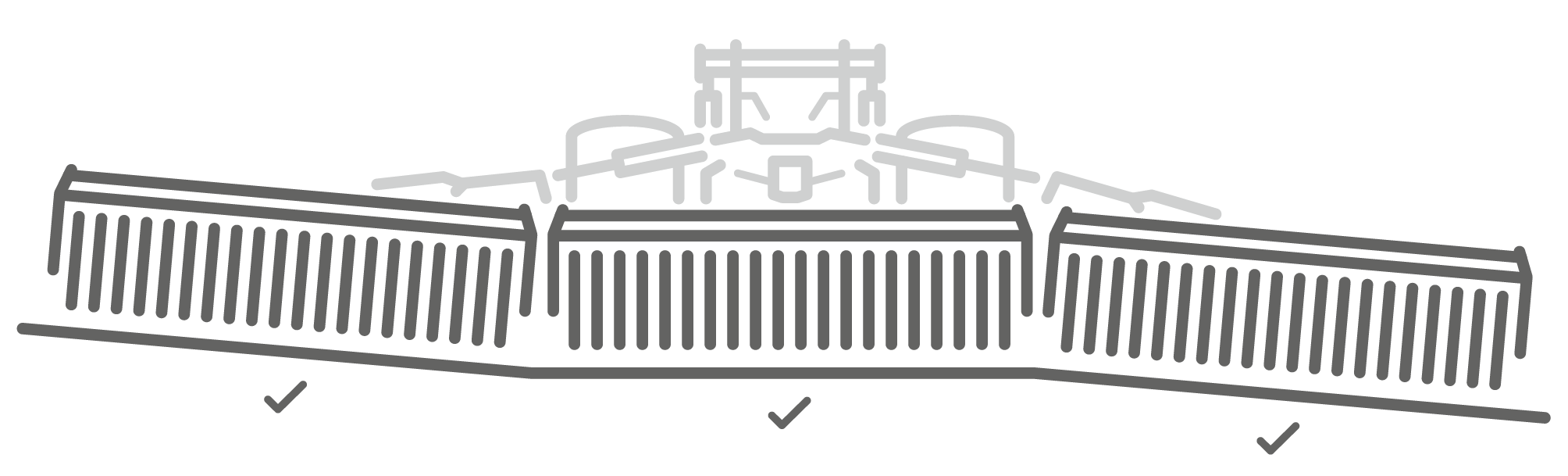

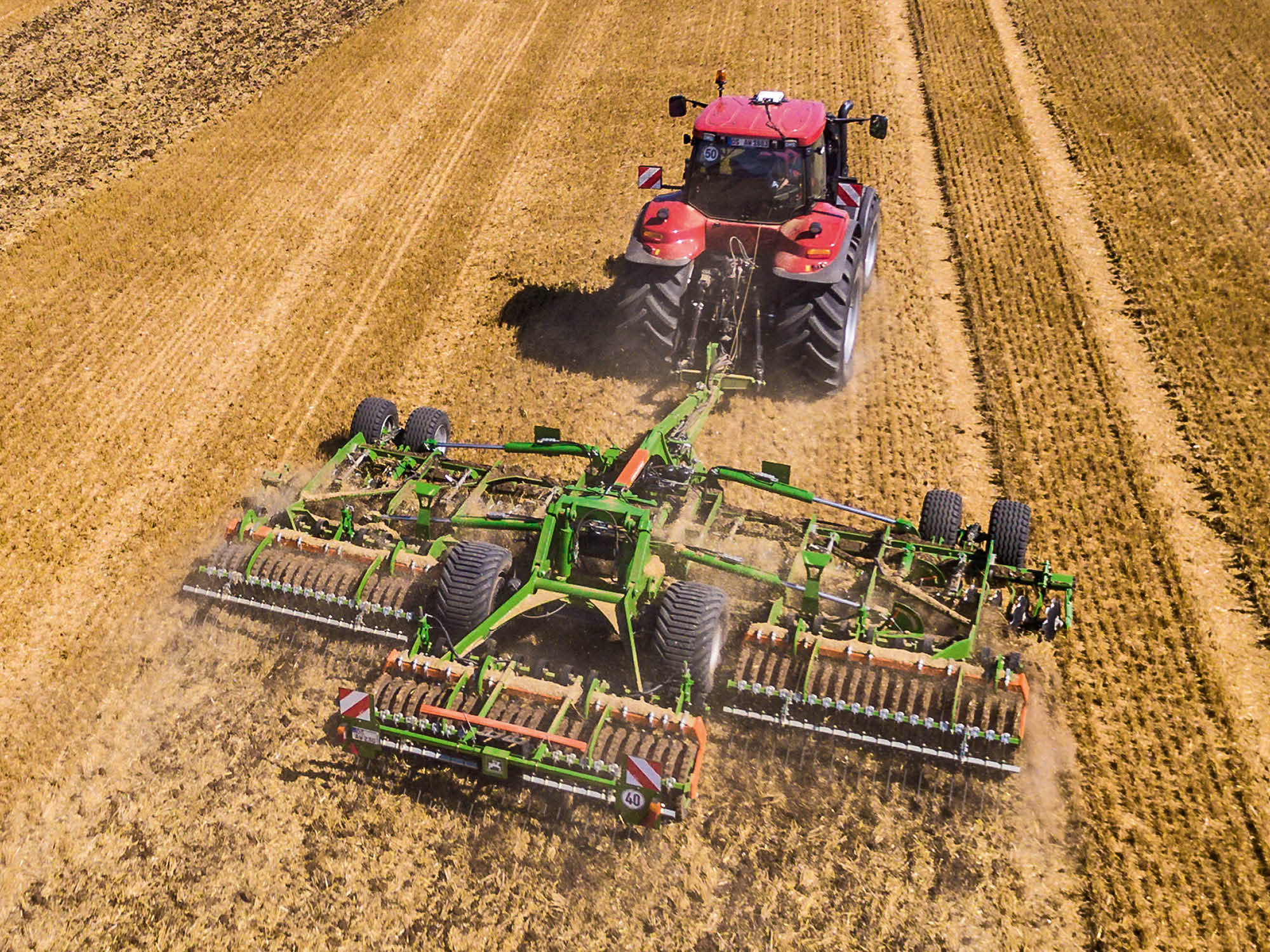

The Catros⁺-2TX and Catros⁺ 12003-2TS trailed compact disc harrows are divided into distinct sections, so that each of these sections guarantees a consistent working depth and also ensures the same depth when working on slopes or in hollows. Each of the Catros⁺-2TX models features outer sections and one centre section. The Catros⁺ 12003-2TS is made up of outer and inner sections. The segment depth is controlled via the rear roller behind. The outer segments at the front of the Catros⁺-2TX are supported via the support wheels and the middle segment via the drawbar. The front of each segment in the Catros⁺ 12003-2TS is carried by a support wheel.

The short distance between the support wheels and the roller provides excellent contour following over hills and through hollows.

Perfect working performance
As the full weight of the centre running gear of the Catros⁺-2TX and that of the rear running gear of the Catros⁺-2TS acts on the discs during operation, good penetration of the discs is ensured, even under tough conditions.

Smooth and even ride
The wing sections are hydraulically pre-pressurised via hydraulic accumulators during operation. The hydraulic pre-pressurising allows individual ground contour following on any of the sections, both upwards and downwards. In this way, the complete machine frame optimally follows the ground contours and provides an even working profile over the entire working width. Thanks to the individual contour following, a smooth ride is possible even under difficult operational conditions and thus an even quality of work is guaranteed.

Advantages of ContourFrame

• Even work profile thanks to individual ground contour following of the segments, both upwards and downwards
• Good penetration even under tough conditions due to the weight of the chassis on the discs
• The Catros-2TX trailed compact disc harrows are also available without ContourFrame as an option
