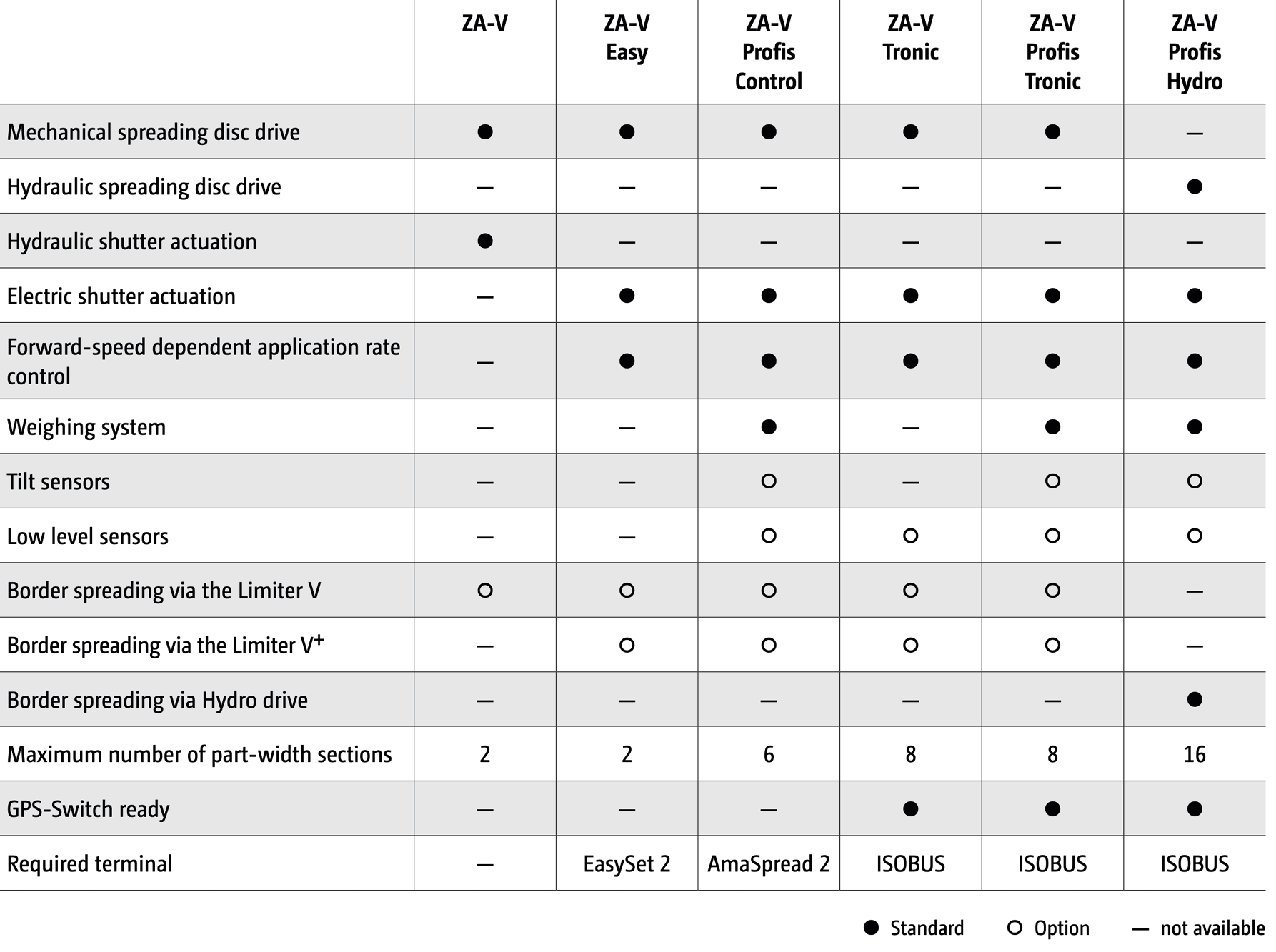

One spreader – so many possibilities

Decide for yourself!





More information + Less information -

ZA-V with hydraulic shutter actuation

If equipped with the hydraulic shutter actuation, AMAZONE offers the simple possibility to operate the shutters via two double-acting hydraulic spool valves on the tractor. As with all ZA-V product models, this version is also equipped with the precision spreading system for working widths from 10 to 36 m and which includes the SBS Soft Ballistic System. It is available in hopper capacities from 1,400 to 4,200 l.

The complete shutter slide assembly underneath the outlet opening can be adjusted via individual setting levers for each side of the spreader. The position of the shutter slide assembly is fixed via an additional clamping lever. The special feature of this model and its hydraulic shutter slide adjustment is that the hydraulic cylinder for the shutter slide actuation always opens or closes completely. The position of the setting lever only serves as a fixing for the shutter slide assembly, not as a stop to the shutter slide, and thus is not pressurised. In this way, any unintentional opening or adjustment of the application rate is avoided.


The benefits of the hydraulic shutter slide actuation:

  • No operator terminal required
  • Individual hydraulic shutter control of each actuation via two double-acting spool valves
  • Alternatively also with the simple 3-way control unit

Accessible holder for the hydraulic hoses

Simple adjustment of the shutter assembly with large, easily visible scales


More information + Less information -

ZA-V Easy – with the machine-specific EasySet 2 in-cab terminal

Convenient electric adjustment and control
The EasySet 2 in-cab terminal provides the option for automatic spread rate regulation at varying forward speeds. In this respect, the size of the apertures are adjusted by automatically setting the shutter position in such a way that the application rate always remains the same. All that is needed is a 12 V power connection for the in-cab terminal. The operator has the option of using an X-sensor (pulse counting), a signal cable (transmission of the tractor speed) or a GPS antenna to transmit the speed signal.

ZA-V Easy: “Easy” isn't just in the name!

In conjunction with electrical shutter actuation, EasySet 2 has the advantage that the application rate can be adjusted in very small steps. The desired application rate is simply entered into the in-cab terminal to the exact kilogram and this can be easily increased or reduced from the cab to both sides, or to either side, during the spreading operation.

To operate the Limiter V+, the desired working height for the relevant setting is initially pre-selected using the “+/-” keys on the in-cab terminal. The system is activated via the designated Limiter button. Any changes to the Limiter function, for instance when moving from field side to border or water course spreading, are also made using the “+/-” keys. If the situation requires it, e.g. during water course spreading, the spread rate can also be reduced towards the edge of the field.

Machine control is rounded off by a convenient function for semi-automatic rate calibration and the emptying of any fertiliser residues.


The benefits

  • Forward-speed dependent application rate control
  • Comfortable electrical operation and adjustment of the application rate from the tractor cab
  • Simple in-cab terminal without menus, only direct function keys
  • Integrated hectare meter with total area counter
  • Border spreading via Limiter V+ with remotely controlled spread rate reduction
More information + Less information -

ZA-V Profis Control – With the machine-specific AmaSpread 2 in-cab terminal

Modern design meets intuitive operation
With AmaSpread 2, AMAZONE offers an intuitive terminal for the ZA-V Profis Control weigh cell spreader. The simple operating structure combined with the high-contrast 4.3 inch colour display guarantees high levels of operator comfort. All the important functions such as the application rate and the position of the border spreading device can be actuated directly and comfortably using a back-lit button. This means that one-hand operation during spreading is not a problem.

Thanks to the high-contrast colour display, the operator has all the spreading information available, even under varying light conditions.

Material-specific settings for up to ten different fertilisers can be stored and recalled at any time. In addition, the spread rate, covered area and working time are stored and can be utilised by the operator for easy documentation.

Apart from the forward-speed-related spread rate regulation, AmaSpread 2 also allows manual switching of up to six part-width sections and the use of the Profis weighing system. In addition, rapid adaptation of the fertiliser rate enables the timely reaction to field conditions. The terminal also offers precise spread rate regulation, thanks to the 200 Hz weighing system.

When using the Limiter V+ border spreading device, the operator can switch between side, boundary or water-course spreading, depending on the border situation, without leaving the tractor cab. Optional low level sensors give the operator an early notification of an upcoming emptying of the hopper via the AmaSpread 2. The functions of the terminal are rounded off by the integration of work lights.


The benefits

  • Forward-speed dependent application rate control
  • Integration of weighing functions for precise quantity control
  • Comfortable electrical operation and adjustment of the application rate from the tractor cab
  • Switching of up to six part-width sections
  • Automatic positioning of the Limiter combined with spread rate reduction for side, border and water course spreading
  • Simple operation without detailed menu guidance


More information + Less information -

ZA-V mounted spreaders with ISOBUS

ZA-V Tronic | ZA-V Profis Tronic | ZA-V Profis Hydro

The complete functional scope of the ISOBUS world
The ZA-V mounted spreader range is rounded off with the even more advanced ZA-V Tronic, ZA-V Profis Tronic and ZA-V Profis Hydro mounted spreaders. ISOBUS communication is integrated in these models by default.

Thanks to the quantity-effect-free aperture and the consistent, triangular-shaped spread pattern from the ZA-V’s spreading unit, excellent results can be achieved through part-width section control via spread rate adaptation when spreading in short work and in wedge-shaped fields.

"Simple and cost-effective part-width section control. Even with the spread rate reduction system of the ZA-V, good results can be achieved at the common working widths." ("top agrar" – System comparison "Automatic spreading in wedge-shaped fields: Which system is best?” · 02/2016)

The mechanically driven ZA-V Tronic offers eight-fold part-width section control as standard. The hydraulic spreading disc drive of the ZA-V Profis Hydro also allows the combination of spread rate adaptation and spreading disc speed. This enables even more precise spreading in wedge-shaped fields. Up to 16 part-width sections are possible in combination with Section Control.

The Profis spreaders feature forward-speed-related rate regulation and a state-of-the-art 200-Hz weighing system with two weigh cells. As option for the ZA-V Profis Tronic and ZA-V Profis Hydro, a tilt sensor is also available which continually ensures a precise weight, even in hilly terrain.

The Limiter V+ can be operated through any ISOBUS terminal for comfortable side, border and water course spreading. The material-specific, optimised settings for the relevant border spreading situations are conveniently stored in the fertiliser menu.


The benefits

  • Convenient operation with a wide variety of ISOBUS terminals
  • Integration into the tractor operation
  • Settings made easy – optional Bluetooth connection of the mySpreader App
  • GPS-Switch automatic part-width section control
  • Use of application maps with GPS-Maps&Doc
  • Job-related documentation in the Task Controller
More information + Less information -

AmaTron 4 ISOBUS terminal

Full functionality

The AmaTron 4 ISOBUS operator terminal, developed in-house by AMAZONE, enables convenient tablet-style, touch-screen control of any ISOBUS-enabled agricultural machine. AmaTron 4 makes all ISOBUS functionality possible - with added convenience, user-friendliness and overviews. And yet: it performs even better in combination with AMAZONE agricultural machinery and guarantees full functionality when it comes to precision farming.


ROBUST!

  • Low-reflection, 8" display with waterproof and dustproof aluminium housing
  • Rear-mounted hand rest for a secure grip

WELL-DESIGNED!

  • Practical and clear menu navigation for simple and intuitive use
  • Actuation via touch screen or soft keys
  • Simple documentation and job management: work first - then save the data

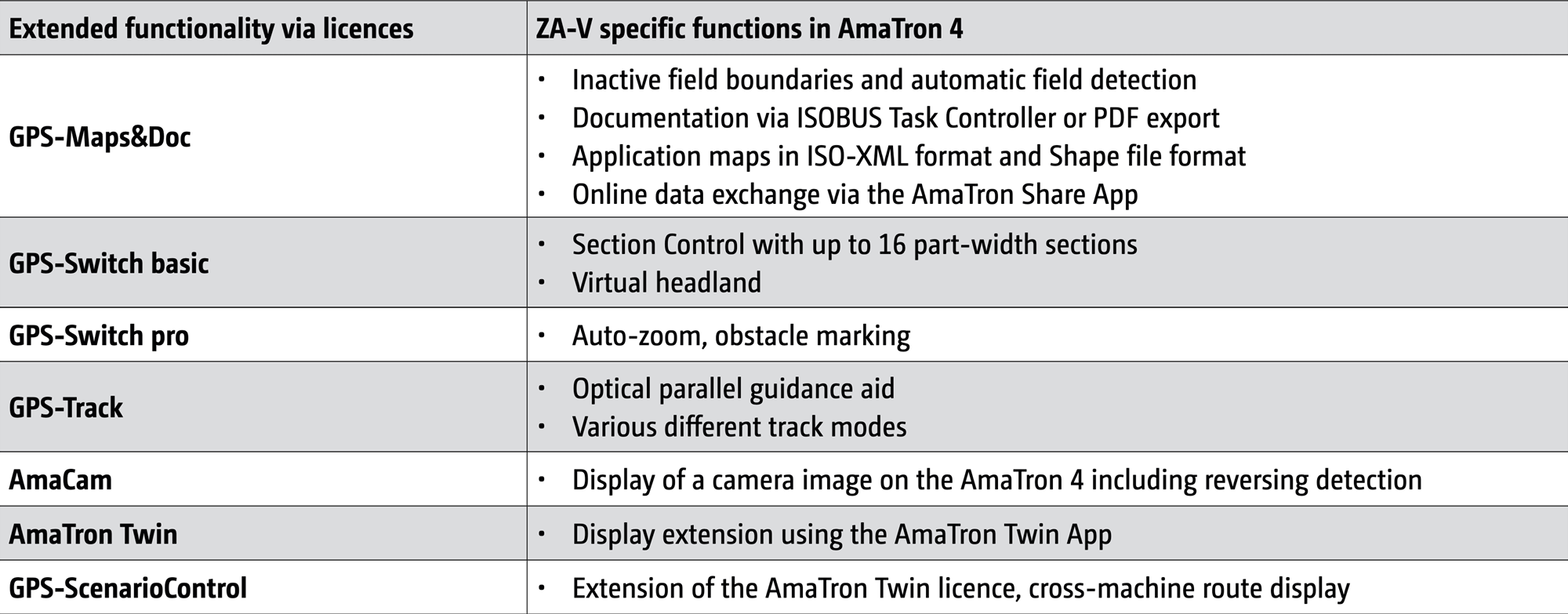

  • Optional software licences for maximising every opportunity in precision agriculture

COMFORT!

  • App carousel for quick and easy navigation at the swipe of a finger
  • Freely configurable status bar - the most important parameters available at a glance, all of the time
  • The practical quick-start menu allows quick and easy import and export of job data


More information + Less information -

More convenience for machine operation

AmaTron Twin App – extended display for user-friendly operation


The AmaTron Twin App offers the driver even more comfort during work, as GPS functions in the map view can also be displayed on a tablet in parallel with the machine operation on the AmaTron 4.


Advantages of the AmaTron Twin display enhancement:

  • Uses an existing mobile device
  • Greater clarity – all applications in view
  • Comfortable control of GPS functions in the map view in parallel via the mobile device
  • Clear, authentic representation of the machine in work and its part-width sections


More information + Less information -

AmaPilot+ – everything in one place!

Thanks to the AUX-N feature, you can operate multiple functions on the machine via AmaPilot+ or any other ISOBUS multi-function joysticks.

Advantages of AmaPilot+:

  • Almost all the functions directly to hand via the 3 levels
  • Adjustable palm rest
  • Freely available key assignment
More information + Less information -

Everyday work made easy – make the most of the possibilities!

GPS-Maps&Doc
with data exchange via the AmaTron Share App

With the GPS-Maps&Doc licence, the AmaTron 4 can gather and document both machine data and geo-referenced data via the Task Controller (TC). Part-area, site-specific operation via application maps in either Shape file or ISO-XML format is also possible.


Advantages of GPS-Maps&Doc with the AmaTron Share App:

  • Intuitive system for processing application maps
  • Automatic part-area, site-specific regulation of the application rate
  • Indication of inactive field boundaries and automatic field detection when approaching the area
  • Optimum crop management through needs-based application
  • Comfortable import of jobs in ISO-XML or Shape file format and export of completed jobs in ISO-XML format or as a job summary in PDF format via the AmaTron Share App
  • Start a new task straight away and decide later whether the data is saved or not



GPS-Track

Display of the application map in AmaTron 4

The GPS-Track parallel guidance greatly helps with orientation in the field, especially on grassland or in areas without tramlines.

  • With a virtual light bar in the status bar
  • Automatic tramline control via GPS for seed drills
  • Various track modes such as A-B lines or contour following
  • Optional with AmaTron 4




Display of the camera image in the AmaTron 4

AmaCam

  • Software licence for displaying a camera image on AmaTron 4.
  • Automatic display of the camera image on AmaTron 4 when reversing






AmaTron Share App for digital data transfer. Try it now!

The AmaTron Share App, which is connected to the AmaTron 4 via a Wi-Fi hotspot, allows all data to be conveniently imported and exported online. For example, the App enables application maps to be easily sent from the office to the AmaTron 4 for completion. Job data can also be sent to customers or back to the office as PDF documentation via the cloud, email or messenger services such as WhatsApp after the job has been completed. This is user-friendly data management!

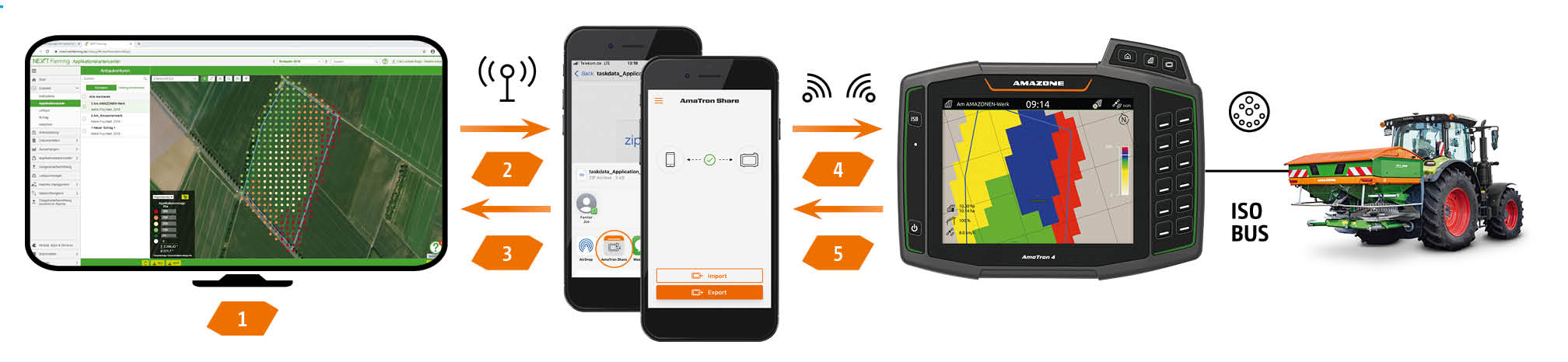

AmaTron Share App – for comfortable data management!

1) Creation of an application map in a Farm Management Information System and automatic part-area, site-specific regulation of the application rate with AMATRON 4
2) ISO-XML and Shape
3) ISO-XML and PDF
4) ISO-XML and Shape
5) ISO-XML and PDF

More information + Less information -

Automatic GPS-Switch part-area shut-off via Section Control

If the operating terminal features Section Control, such as, for example, GPS-Switch part-width section control from AMAZONE, the switching of the part-width sections can be carried out completely automatically and in relation to the GPS position. Once a field has been created, the driver can concentrate fully on operating the vehicle in automatic mode, since the part-width sections are switched automatically in wedge shaped fields and on headlands.


Advantages of the automatic part-width section control:

  • Stress relief on the driver
  • Increase in precision especially at night or at higher speeds
  • Fewer overlaps and gaps
  • Saving on input costs
  • Less crop damage and less environmental pollution

Each fertiliser has different trajectory characteristics. This is why Section Control calculates the exact switching points for the optimum position of the spread fan on each pass.


1) Overlap zones
2) 8 part-width sections
3) ZA-V Tronic
4) 16 part-width sections
5) ZA-V Profis Hydro
6) Urea
7) CAN



GPS-Switch

With GPS-Switch, AMAZONE offers GPS-based, fully automatic, part-width section control for all AMAZONE operator terminals and ISOBUS-compatible fertiliser spreaders, crop protection sprayers or seed drills.


When utilising GPS-Switch, SwitchPoint means the adjustment of the switch on and switch off points depending on fertiliser type and working width. Both values can be taken from the spreading chart and entered into the relevant operator terminal.

1) SwitchPoint off (switch-off time)
2) Headland tramline
3) Tramline centre
4) SwitchPoint on (switch-on time)
