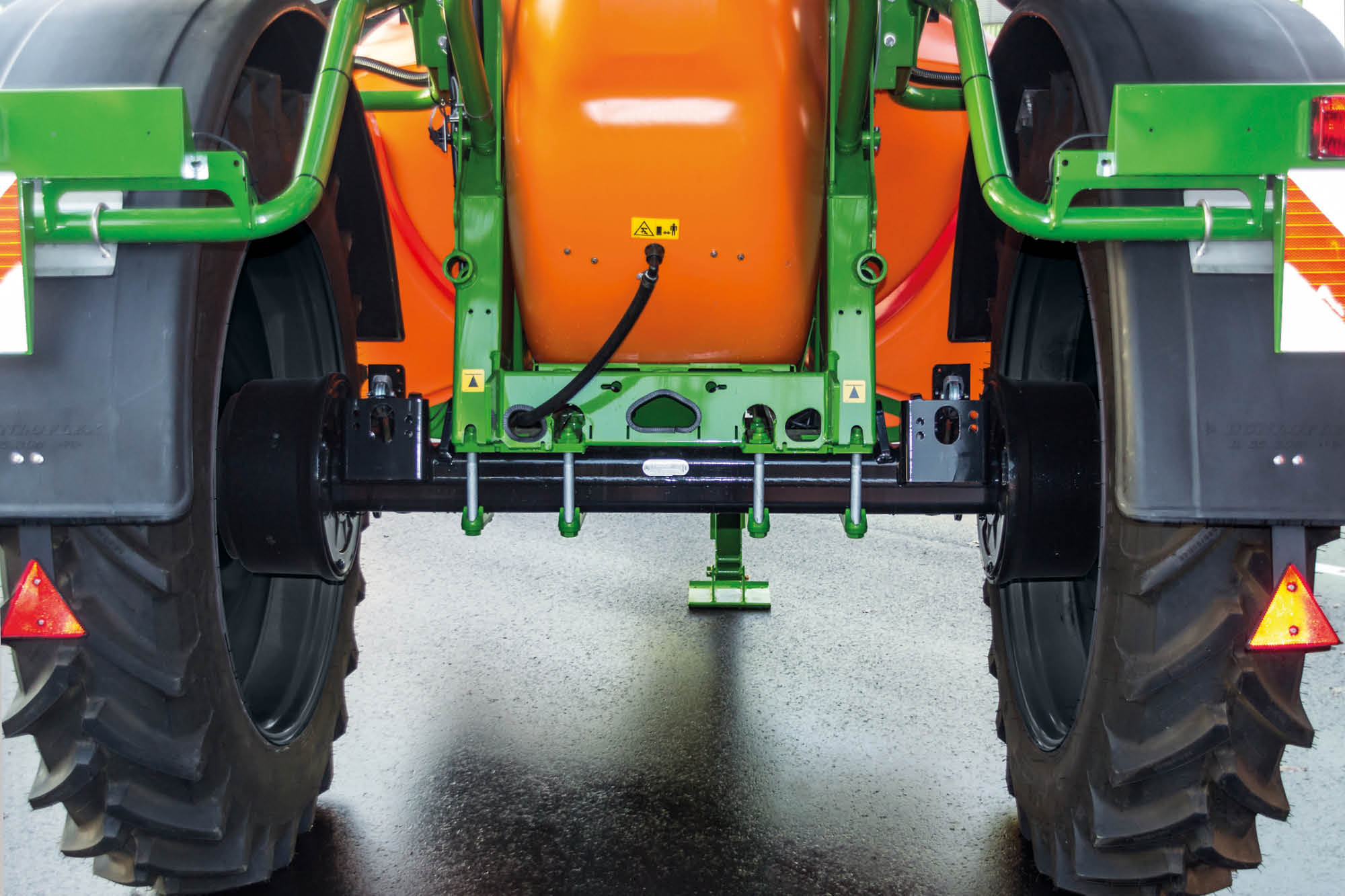

Axles and brakes

Achsen und Bremse (1) Spritze_Details_d0_mm_IMG_4313_d2_190110_1

Safety first!

The wide variety of axles offer the right solution for every requirement.


The benefits:

  • Tyre sizes up to 520/85 R46 (2.05 m diameter) possible
  • Ground clearance up to 82 cm
  • Permissible speeds of up to 60 km/h with the ALB system (automatic load dependent braking)


The options:

  • Fixed axles with track widths from 1.50 to 2.25 m – two track widths are possible by reversing the wheels.
  • Adjustable axle with stepless track width adjustment from 1.50 m to 2.25 m for the UX 3200 Special and the UX 4200 Special
  • AutoTrail axle steering with control via the multifunction joystick
